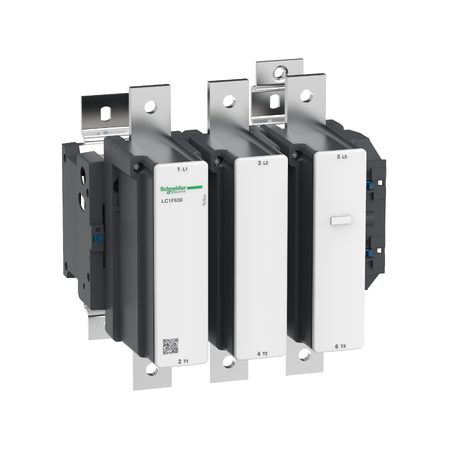

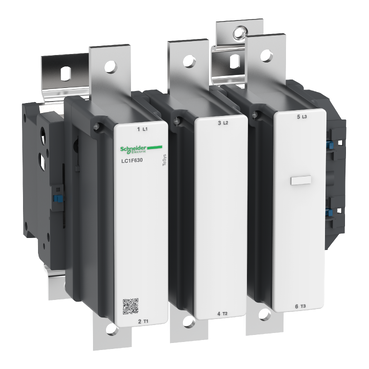

TeSys F630 3P AC3 Contactor | 630A Rated Current | 240V Coil Voltage | Heavy Duty | @Pack of 1 | by Clipsal
The TeSys F630 3P AC3 Contactor is designed for industrial motor control, featuring a robust 630A rated operational current and a 240V AC coil voltage. Ideal for heavy-duty applications such as HVAC systems and manufacturing automation, this contactor ensures high electrical and mechanical durability, making it perfect for switching large electrical loads efficiently.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys F630 3P AC3 Contactor | 630A Rated Current | 240V Coil Voltage | Heavy Duty | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1F630U7
Alternatively Known As: Schneider LC1F630U7, TeSys F630 Contactor, 3 Pole 630A Contactor, Industrial Power Contactor, Heavy Duty Contactor
Technical Specifications
- Series: TeSys F
- Type: Contactor
- Poles: 3 (3 NO)
- Utilization Category: AC-3
- Rated Operational Current: 630A (AC-3, 440V)
- Coil Voltage: 240V AC 50/60Hz
- Rated Insulation Voltage: 1000V
- Electrical Durability: 1 million cycles (AC-3)
- Mechanical Durability: 5 million cycles
- Mounting: Panel
- Standards: IEC 60947-4-1, EN 60947-4-1
- Ambient Temperature: -5°C to +60°C
- Dimensions (H x L x W): 340mm x 220mm x 320mm
- Weight: 12 kg
Key Features
- TeSys F series 3-pole contactor
- AC-3 utilization category for motor control
- Rated operational current: 630A (AC-3, 440V)
- Coil voltage: 240V AC
- 3 normally open (NO) main contacts
- High electrical and mechanical durability
- Suitable for heavy-duty industrial applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Switching of large electrical loads
- Pumping stations
- HVAC systems
- Manufacturing automation
- Power distribution panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control of large motors, reducing energy waste
- Long operational life reduces replacement frequency and associated waste
- RoHS compliant materials minimize environmental impact
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TeSys LC1F630U7 3P AC3 Contactor is available for immediate purchase. Ideal for industrial motor control and heavy-duty switching applications.
