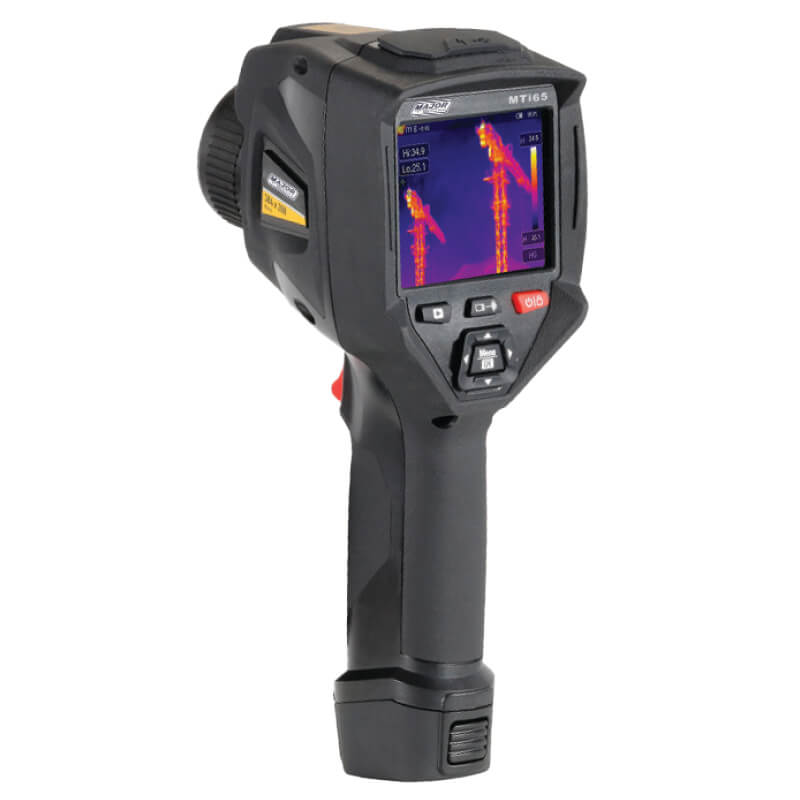

Thermal Imager 384 x 288 Pixel MajorTech
MajorTech thermal imager features a 384 x 288 pixel resolution and thermal display. Ideal for locating hotspots and electrical faults.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: MajorTech MTi60 Thermal Imager, Infrared Thermal Camera, Professional Thermal Imaging Camera
Technical Specifications
- Thermal Detector Resolution: 384 x 288 pixels
- Real Temperature Points: 110,592
- Image Frequency: 50Hz
- Thermal Sensitivity: <0.08°C at 30°C / 80mK
- Temperature Measurement Range: -20°C to 150°C and 0°C to 650°C
- Temperature Accuracy: ±2°C or ±2% of reading
- Focus Mode: Manual
- Digital Zoom: 1x to 32x continuous
- Field of View: 17° x 12.7°
- Spatial Resolution: 0.77mrad
- Spectral Range: 8–14μm
- Display: 3.5-inch TFT LCD touchscreen
- Display Resolution: 640 x 480 pixels
- Laser Distance Measurement: 0.05m to 30m
- Emissivity Adjustment: 0.01 to 1.0
- Image Analysis: Centre spot, 3 manual spots, 2 lines and 3 areas
- Image Storage: JPEG, HIR and simultaneous visual image with measurement data
- Storage Media: 8GB Micro SD card and 3.4GB internal EMMC
- Connectivity: Wi-Fi, USB Mini and HDMI
- Video Storage: MPEG-4
- Included Accessories: Carry case, lithium polymer battery, charger, USB cable, software, SD card and calibration certificate
- Dimensions (H x L x W): 120mm x 260mm x 101mm
- Weight: 0.846 kg
Key Features
- 384 x 288 pixel uncooled microbolometer detector
- 50Hz thermal imaging for smooth live inspection
- Manual focus and 32x continuous digital zoom
- Touchscreen control with 640 x 480 display
- Built-in laser distance meter with up to 30m range
- Hot, cold and centre spot temperature markers
- Adjustable emissivity and environmental measurement corrections
- Wi-Fi transfer and real-time video streaming to compatible devices
- HDMI video output and multiple image presentation modes
- Rugged industrial casing with protective carry case
Applications
- Electrical hotspot and fault detection
- HVAC and refrigeration system inspection
- Industrial machinery and plant maintenance
- Building inspection and thermal performance assessment
- Preventative maintenance and condition monitoring
- Inspection of switchboards, distribution equipment and electrical connections
Environmental Benefits
- Rechargeable lithium polymer battery reduces reliance on disposable batteries during repeated inspections
- Digital image storage and Wi-Fi transfer can reduce the need for printed inspection records
- Rugged construction may extend service life and reduce replacement waste
Warranty Information
Two-year warranty against defects in materials or workmanship under normal use and service, subject to Major Tech product registration and warranty terms.
Available Now
Available through Major Tech and authorised Australian distributors.
