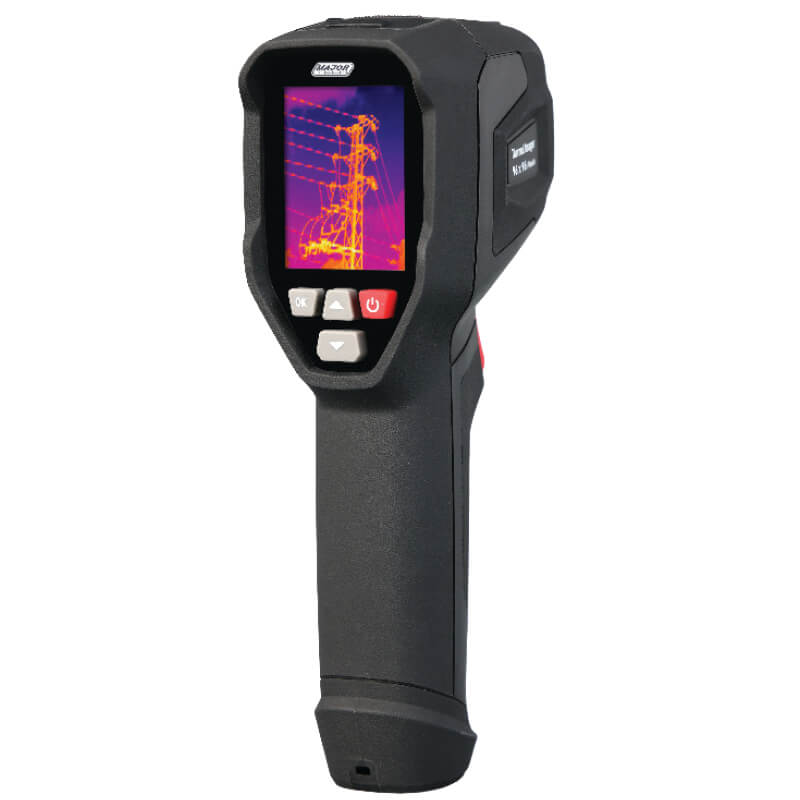

Thermal Imager 96 x 96 Pixel MajorTech
MajorTech thermal imager features a 96 x 96 pixel resolution and thermal display. Ideal for locating hotspots and electrical faults.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech MTi10 Thermal Imager, Infrared Thermal Camera, Electrical Thermal Imaging Camera
Technical Specifications
- Thermal Detector Resolution: 96 x 96 pixels
- Image Frequency: 25Hz
- Field of View: 50° x 50°
- Spatial Resolution: 8.89mrad
- Thermal Sensitivity: <0.05°C at +30°C / 50mK
- Focus: Focus-free
- Display: 2.0-inch LCD, 240 x 120 pixels
- Image Mode: Infrared image
- Temperature Range: -20°C to 550°C
- Temperature Accuracy: ±2°C or ±2% of reading
- Measurement: Centre spot temperature
- Detection: Automatic hot and cold markers
- Measurement Corrections: Emissivity and reflected temperature
- Storage: 8GB Micro SD card and 3.5GB internal EMMC
- Video Storage: MPEG-4, 240 x 320 at 30fps
- Image Storage: JPEG or HIR files with measurement data
- Interface: USB Type-C
- Data Transfer: PC data transfer and live video via USB
- Dimensions (H x L x W): 100mm x 234mm x 75mm
- Weight: 0.5 kg
Key Features
- 96 x 96 pixel thermal imaging resolution
- 25Hz image frequency for responsive thermal viewing
- Centre spot temperature measurement
- Automatic hot and cold marker detection
- Adjustable emissivity and reflected temperature correction
- Temperature measurement range from -20°C to 550°C
- Stores thermal images and video
- USB Type-C connection for data transfer and live PC video
- Rugged industrial housing
- Suitable for predictive maintenance, troubleshooting and equipment verification
Applications
- Locating electrical hotspots and faults
- Electrical panel and switchboard inspections
- Predictive maintenance of electrical equipment
- HVAC/R and mechanical equipment troubleshooting
- Equipment verification and condition monitoring
- Thermal inspection of wiring, connections and components
Environmental Benefits
- Supports early fault detection and predictive maintenance, helping extend equipment service life
- Non-contact inspection can reduce unnecessary component replacement during fault diagnosis
- Digital image and video storage reduces reliance on printed inspection records
Warranty Information
Two-year warranty for Major Tech test instruments, subject to product registration and the manufacturer's warranty conditions.
Available Now
Available through MajorTech and authorised Australian distributors.
