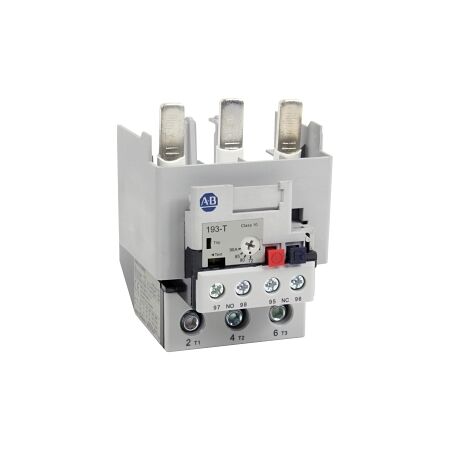

Thermal Overload Relay 72-90A 100C Direct Mounting NHP

BRAND: Allen-Bradley
SKU: 193T1DC90
$515.40 List price: $642.30
+ −
30 Days Return Electricians Unlock Trade Access
Thermal overload relay with adjustable 72-90A current range and 100C release class—ideal for industrial motor protection.
Technical Specifications
  • Adjustable Current Range: 72-90 A
  • Release Class: CLASS 10 A
  • Max Rated Operation Voltage: 690 V
  • Number of Auxiliary Contacts (NC): 1
  • Number of Auxiliary Contacts (NO): 1
  • Type of Electrical Connection: Screw connection
  • Dimensions (H x L x W): 75.5mm x 63.5mm x 45mm
  • Weight: 0.12 kg
Key Features
  • Adjustable current range from 72 to 90 A.
  • Automatic and push-button reset functions.
  • Direct attachment mounting method.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection in various machinery
  • Commercial: Equipment requiring overload protection
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Enhances equipment longevity by preventing motor overloads.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 193T Overload Thermal Relay 72 to 90A is available now for immediate purchase. Ideal for industrial applications requiring reliable motor protection.

Non-Returnable & Non-Cancellable

193T1DC90-AU-Motor-Thermal-Overload-Relay-Datasheet.pdf (193T1DC90-AU-Motor-Thermal-Overload-Relay-Datasheet.pdf, 247 Kb) [Download]
