Trade Discount 17%

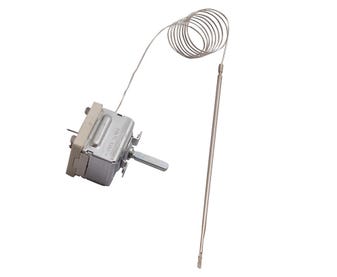

Thermostat 16A 240V | 50-320°C Range | SPST Design & 860mm Length by Cabac
This 16A 240V thermostat features a temperature range of 50-320°C and a reliable SPST design—ideal for heating systems and industrial applications. Built for precision control, with a convenient 860mm length for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

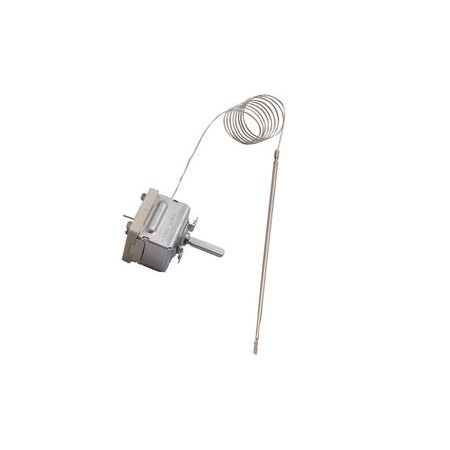

Product Name/Title: Thermostat 16A 240V | 50-320°C Range | SPST Design | 860mm Length by Brand
Brand: Cabac
SKU: EG55.17062.010
Alternatively Known As: Cooking thermostat, temperature controller, oven thermostat, SPST thermostat
Technical Specifications
- Voltage: 240V
- Current Rating: 16A
- Temperature Range: 50-320°C
- Switch Type: SPST (break on temperature rise)
- Capillary Length: 860mm
- Sensor Dimensions: 178mm length x 3mm diameter
- Start Angle: 45 degrees
- Rotation: 270 degrees
- Calibrated knob compatible with P/N EF524.107A
- Dimensions (H x L x W): n/a mm x 860mm x n/a mm
- Weight: 0.2 kg
Key Features
- Temperature range from 50 to 320 degrees Celsius
- Single pole single throw (SPST) switch breaks on temperature rise
- 16A current rating at 240V
- 860mm capillary length with 178 x 3mm sensor
- Start angle 45 degrees with 270 degrees rotation
- Calibrated knob compatible with P/N EF524.107A
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure safety and proper operation.
Applications
- Cooking appliances requiring temperature control
- Replacement part for ovens, cooktops, and other heating devices
Standards & Compliance
- Complies with AS/NZS 60335 for safety of household and similar electrical appliances
Environmental Benefits
- Helps maintain efficient appliance operation reducing energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms.
Available Now
The Cabac Thermostat 16A 240V 50-320 DEG C SPST 860MM is available now for immediate purchase. Ideal for cooking appliance repairs and replacements.
