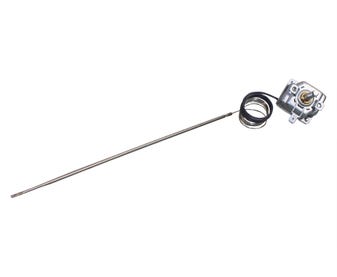

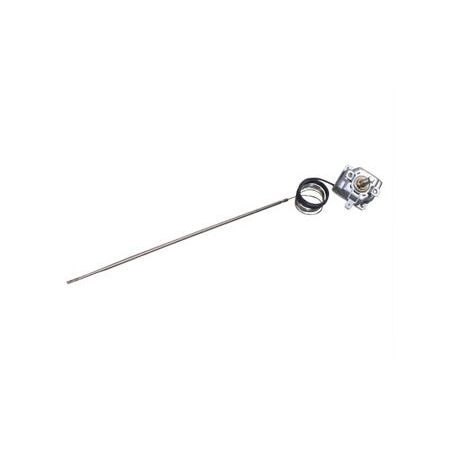

Thermostat 16A 240V | 55-256°C Range | SPST Design | 870mm by Cabac

BRAND: CABAC
SKU: EG55.19052.868
$105.40 List price: $127.60
+ −
30 Days Return Delivery Options
This 16A thermostat operates at 240V with a temperature range of 55-256°C, making it ideal for various heating applications. Built for reliability and precision, it features a single pole single throw (SPST) design for easy control.

Product Name/Title: Thermostat 16A 240V | 55-256°C Range | SPST Design | 870mm by Brand

Brand: Cabac

SKU: EG55.19052.868

Alternatively Known As: Cooking thermostat, temperature control thermostat, oven thermostat, SPST thermostat

Technical Specifications
  • Temperature range: 55-256°C
  • Switch type: SPST (Single Pole Single Throw)
  • Current rating: 16A at 240V
  • Capillary length: 870mm
  • Sensor dimensions: 226mm length x 3mm diameter
  • Start angle: 85 degrees
  • Rotation angle: 318 degrees
  • Breaks circuit on temperature rise
  • Dimensions (H x L x W): n/a mm x 870mm x n/a mm
  • Weight: 0.1 kg
Key Features
  • Temperature range from 55 to 256 degrees Celsius
  • Single pole single throw (SPST) switch
  • 16A current rating at 240V
  • 870mm capillary length with 226 x 3mm sensor
  • Start angle 85 degrees and rotation 318 degrees
  • Breaks circuit on temperature rise
Professional Installation Requirements
  • Professional installation by a qualified technician or electrician is recommended to ensure safety and proper operation.
Applications
  • Cooking appliances requiring temperature control
  • Replacement part for ovens, stoves, and other cooking equipment
Standards & Compliance
  • AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
  • Helps maintain efficient energy use by precise temperature control
  • Reduces energy waste in cooking appliances
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cabac Thermostat 16A 240V 55-256 DEG C SPST 870MM is available now for immediate purchase. Ideal for use in cooking appliances requiring reliable temperature control.
