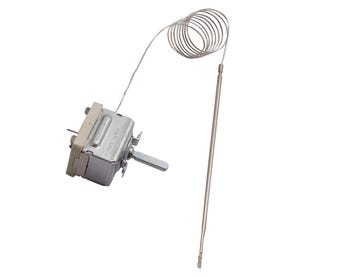

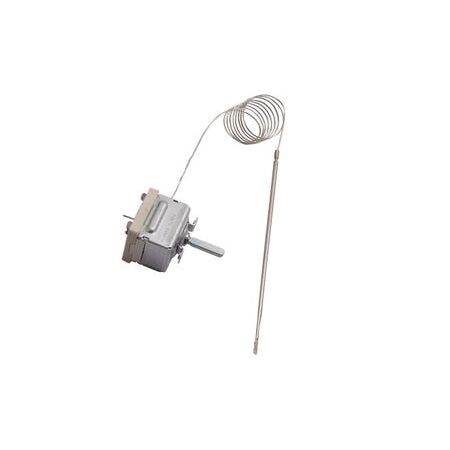

Thermostat 16A 240V | 60-298°C Range | SPST Design | 950mm Length by Cabac
This 16A 240V thermostat features a temperature range of 60-298°C and a reliable SPST design—ideal for heating systems and industrial applications. Built for precision control, with a 950mm length for versatile installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermostat 16A 240V | 60-298°C Range | SPST Design | 950mm Length by Brand
Brand: Cabac
SKU: EF55.17059.390
Alternatively Known As: Cooking thermostat, oven thermostat, temperature controller, SPST thermostat
Technical Specifications
- Temperature range: 60-298°C
- Switch type: SPST (Single Pole Single Throw)
- Current rating: 16A at 240V
- Capillary length: 950mm
- Sensor dimensions: 183mm length x 3mm diameter
- Start angle: 40 degrees
- Rotation angle: 247 degrees
- Dial shaft length: 33mm
- Break on temperature rise
- Dimensions (H x L x W): n/a mm x 950mm x n/a mm
- Weight: 0.2 kg
Key Features
- Temperature range from 60 to 298 degrees Celsius
- Single pole single throw (SPST) switch
- 16A current rating at 240V
- 950mm capillary length with 183 x 3mm sensor
- Start angle 40 degrees, rotation 247 degrees
- Break on temperature rise functionality
- 33mm dial shaft length
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure safety and proper operation.
Applications
- Cooking appliances requiring temperature control
- Replacement part for ovens, cooktops, and other heating devices
Standards & Compliance
- AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
- Helps maintain efficient energy use by precise temperature control
- Reduces energy waste in cooking appliances
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Thermostat 16A 240V 60-298 DEG C SPST 950MM is available now for immediate purchase. Ideal for cooking appliance repairs and replacements.
