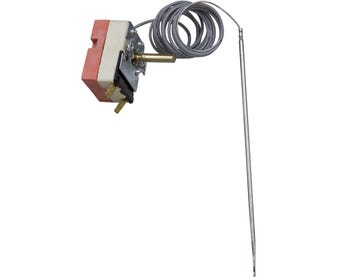

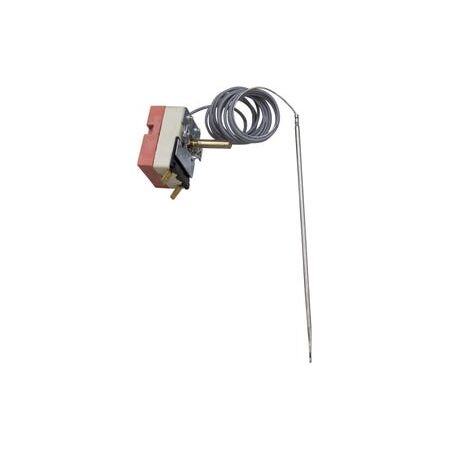

Thermostat 16A 240V | 60-90°C Range | SPST Control | Reliable Temperature Regulation by Cabac

BRAND: CABAC
SKU: EF55.13014.210
$176.20 List price: $213.20
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
This 16A thermostat operates at 240V with a temperature range of 60-90°C—ideal for heating systems and temperature regulation. Built for reliability and efficiency, it features SPST control for straightforward operation.

Product Name/Title: Thermostat 16A 240V | 60-90°C Range | SPST Control by RC33

Brand: Cabac

SKU: EF55.13014.210

Alternatively Known As: Cooking Thermostat, Oven Thermostat, Temperature Control Switch, SPST Thermostat

Technical Specifications
  • Switch Type: SPST (Single Pole Single Throw)
  • Temperature Range: 60-90°C
  • Capillary Length: 1430mm
  • Sensor Dimensions: 160 x 3mm
  • Voltage Rating: 240V
  • Current Rating: 16A
  • Start Angle: 0 degrees
  • Rotation: 180 degrees
  • Function: Break on temperature rise
  • Dimensions (H x L x W): 3mm x 1430mm x 160mm
  • Weight: 0.1 kg
Key Features
  • Single pole single throw (SPST) switch
  • Breaks circuit on temperature rise
  • Operating temperature range 60-90°C
  • 16A current rating at 240V
  • 1430mm capillary length with 160 x 3mm sensor
  • Start angle 0 degrees, rotation 180 degrees
Professional Installation Requirements
  • Installation by a qualified appliance technician or electrician is recommended to ensure safety and proper operation.
Applications
  • Cooking appliances requiring temperature control
  • Replacement part for ovens, cooktops, and other cooking equipment
Standards & Compliance
  • AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
  • Helps maintain efficient appliance operation reducing energy waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms.

Available Now

The Cabac Thermostat 16A 240V 60-90 DEG C SPST RC33 is available for immediate purchase, ideal for cooking appliance repairs and replacements.
