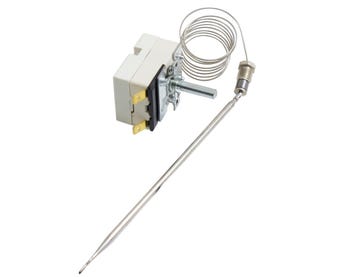

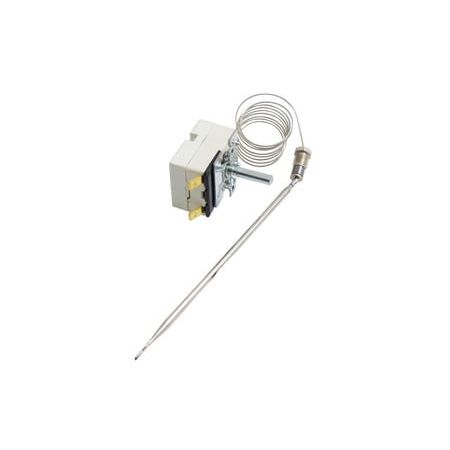

Thermostat 16A 240V | 98-205°C Range | SPST Design & 830mm Capillary by Cabac
This 16A thermostat operates at 240V with a temperature range of 98-205°C—ideal for heating systems and industrial applications. Built for reliability and precision, it features a simple SPST design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermostat 16A 240V | 98-205°C Range | SPST Design by TSTAT
Brand: Cabac
SKU: EF55.13042.180
Alternatively Known As: Cooking thermostat, oven thermostat, temperature control switch, SPST thermostat
Technical Specifications
- Switch Type: SPST break on temperature rise
- Voltage: 240V
- Current Rating: 16A
- Temperature Range: 98-205°C
- Capillary Length: 830mm
- Sensor Dimensions: 157mm x 4mm
- Start Angle: 93 degrees
- Rotation: 270 degrees
- Knob: Calibrated to suit P/N EF524.102A
- Dimensions (H x L x W): n/a mm x 830mm x n/a mm
- Weight: 0.1 kg
Key Features
- Temperature range: 98-205°C
- Single pole single throw (SPST) switch
- 16A 240V rating
- 830mm capillary with 157 x 4mm sensor
- Gland nuts on capillary for secure installation
- Start angle 93 degrees, rotation 270 degrees
- Calibrated knob compatible with P/N EF524.102A
Professional Installation Requirements
- Installation by a qualified appliance technician or electrician is recommended to ensure safety and proper operation.
Applications
- Cooking appliances requiring temperature control
- Replacement thermostat for ovens and cookers
- Appliance repair and maintenance
Standards & Compliance
- Complies with AS/NZS 60335 for safety of household and similar electrical appliances
Environmental Benefits
- Helps maintain efficient appliance operation reducing energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms.
Available Now
The Cabac TSTAT 16A 240V 98-205 DEG C SPST RC63 thermostat is available now for immediate purchase. Ideal for cooking appliance repairs and replacements.
