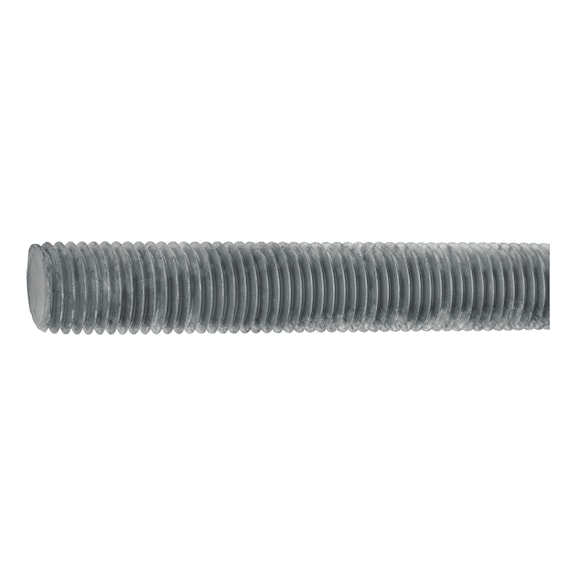

Threaded Rod DIN 976-1 Shape A | M24 Metric Thread | 8.8U Steel | Hot-Dip Galvanised | by Wurth
The Threaded Rod DIN 976-1 Shape A features a robust M24 metric thread and is made from high-strength 8.8U steel, ensuring durability and reliability in various applications. With a hot-dip galvanised finish, it offers enhanced corrosion resistance, making it ideal for construction, industrial machinery assembly, and mechanical fastening. This rod is designed for professional installation, ensuring secure fastening in structural and mechanical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Threaded Rod DIN 976-1 Shape A | M24 Metric Thread | 8.8U Steel | Hot-Dip Galvanised | by Wurth
Brand: Wurth
SKU: 9597024
Alternatively Known As: Galvanised Threaded Rod, Hot-Dip Galvanised Threaded Bar, Metric Thread Rod M24, Steel Threaded Rod 8.8U
Technical Specifications
- Thread type x nominal diameter: M24
- Length: 1000 mm
- Standards: DIN 976-1
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Form: A
- Thread type: Metric thread
- Identification colour: Traffic yellow RAL 1023
- RoHS-compliant: Yes
- Dimensions (H x L x W): 24mm x 1000mm x 24mm
- Weight: 1.9 kg
Key Features
- Manufactured with thread undersize in tolerance class 6AZ before surface protection.
- ISO-compliant after hot-dip galvanisation ensuring compatibility with hot-dip galvanised nuts with thread tolerance 6H.
- Hot-dip galvanised surface for enhanced corrosion resistance.
- Made from high-strength steel property class 8.8U.
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper torque and secure fastening according to engineering specifications.
Applications
- Construction: Structural fastening and anchoring
- Industrial: Machinery assembly and maintenance
- General: Mechanical fastening requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanisation extends product life reducing replacement frequency and waste.
- RoHS-compliant ensuring reduced hazardous substances.
Warranty Information
Wurth provides standard manufacturer warranty covering defects in material and workmanship.
Available Now
The Wurth Threaded Rod DIN 976-1 Shape A is available for immediate purchase, ideal for construction, industrial, and mechanical fastening applications.
