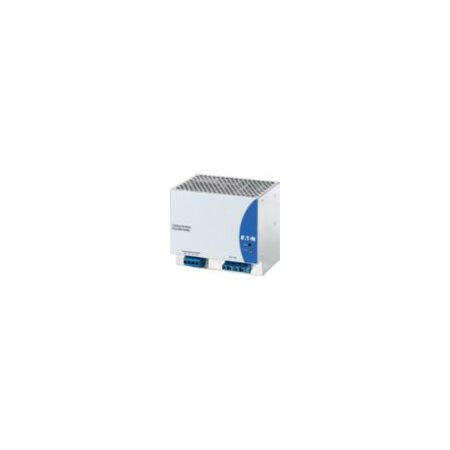

Three-Phase 24V DC Power Supply | 480W Output | IP20 Protection | Rail Mounting by Eaton
This three-phase 24V DC power supply delivers a stable 480W output, ideal for industrial automation systems and control panels. Built for reliability with IP20 protection and high efficiency over 90%, it ensures optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Three-Phase 24V DC Power Supply | 480W Output | IP20 Protection | Rail Mounting by Eaton
Brand: Eaton
SKU: PSG480F24RM
Alternatively Known As: Three-phase 24V DC power supply, 480W industrial power supply, Eaton PSG480F24RM power supply
Technical Specifications
- Input Voltage: 320 - 600 V AC, 3-phase
- Output Voltage: 24 V DC ±2%
- Output Current: 20 A max
- Power Output: 480 W
- Power Consumption: 500 VA
- Protection Class: Class 1 with PE connection
- Degree of Protection: IP20 (NEMA 1)
- Operating Temperature: -25 °C to 80 °C
- Storage Temperature: -25 °C to 85 °C
- Mounting: Rail mounting possible
- Connection Type: Screw connection terminals
- Residual Ripple: < 50 mV / < 150 mV
- Inrush Current: < 50 A at 3 x 400 V AC
- Efficiency: > 90%
- Vibration Resistance: 10 - 500 Hz at 30 m/s² (3 G max)
- LED Indicator: Green LED for DC OK status
- Overcurrent Protection: 150% of max output power
- Capacitive Load: 10000 µF max
- Dimensions (H x L x W): 170mm x 175mm x 155mm
- Weight: 1.5 kg
Key Features
- Three-phase input voltage range: 320 - 600 V AC
- Stable 24 V DC output voltage with ±2% tolerance
- Output current up to 20 A
- Short-circuit proof and mains overvoltage protection
- Modular design with screw connection terminals
- Rail mounting capable
- Status indication via green LED for DC OK
- High efficiency >90% at 3 x 400 V AC and 3 x 500 V AC
- Operating temperature range from -25 °C to 80 °C
- Protection degree IP20 (NEMA 1)
- Low residual ripple < 50 mV / < 150 mV
- Inrush current limitation and transient overvoltage protection
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Industrial automation systems
- Control panels and switchgear
- Machinery requiring stable 24 V DC power supply
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High efficiency reduces energy consumption and heat generation
- RoHS compliant, minimizing hazardous substances
- Designed for long operational life reducing electronic waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton PSG Power Supply Unit 3 Phase 24VDC 480W IP20 is available now for immediate purchase. Ideal for industrial and automation applications requiring reliable three-phase power supply.
