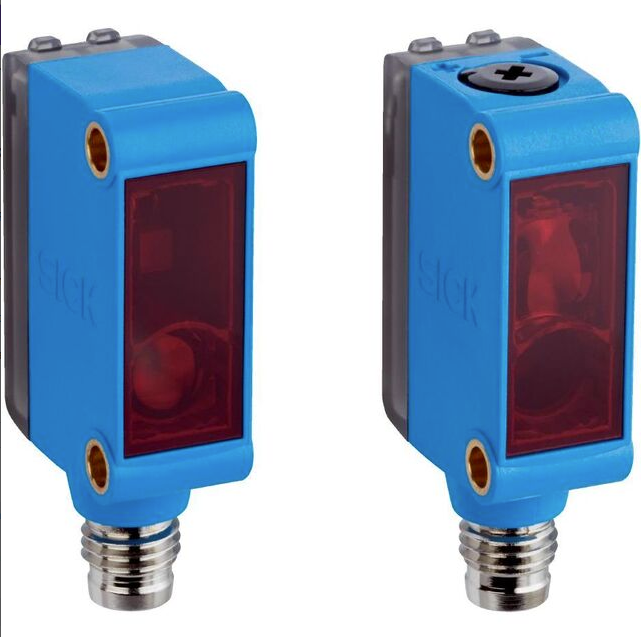

Through-beam Photoelectric Sensor GSE6-P4211 IP67 Rated Fast Response Time SICK

BRAND: SICK
SKU: 1061394
$327.30 List price: $411.40
+ −
30 Days Return Electricians Unlock Trade Access
The GSE6-P4211 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 15 meters and a fast response time of

Alternatively Known As: Photoelectric Sensor, Through-beam Sensor, Optical Sensor, Industrial Sensor

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Current consumption: 30 mA
  • Protection class: III
  • Output type: PNP digital output
  • Switching mode: Light/dark selectable
  • Response time: less than 500 µs
  • Switching frequency: 1000 Hz
  • Light source: PinPoint LED, visible red light, 650 nm wavelength
  • Light spot size: Ø 375 mm at 12 m
  • Adjustment: Potentiometer, 270° rotation
  • Housing material: Plastic ABS/PC
  • Front screen material: Plastic PMMA
  • Cable material: Plastic PVC
  • Connection: Male M8, 4-pin connector
  • Enclosure rating: IP67
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -40 °C to +70 °C
  • Dimensions (H x L x W): 31.5mm x 21mm x 12mm
  • Weight: 0.17 kg
Key Features
  • Through-beam photoelectric sensing principle
  • Sensing range up to 15 meters
  • Visible red light with 650 nm wavelength
  • Potentiometer adjustment with 270° rotation
  • IP67 rated housing for dust and water protection
  • Fast response time under 500 microseconds
  • Selectable light/dark switching mode with PNP output
  • Compact plastic housing with M8 4-pin male connector
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
  • Industrial automation for object detection
  • Safety and monitoring in manufacturing processes
  • Material handling and packaging systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED light source reduces power consumption
  • Durable IP67 housing extends product life and reduces waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK GSE6-P4211 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
