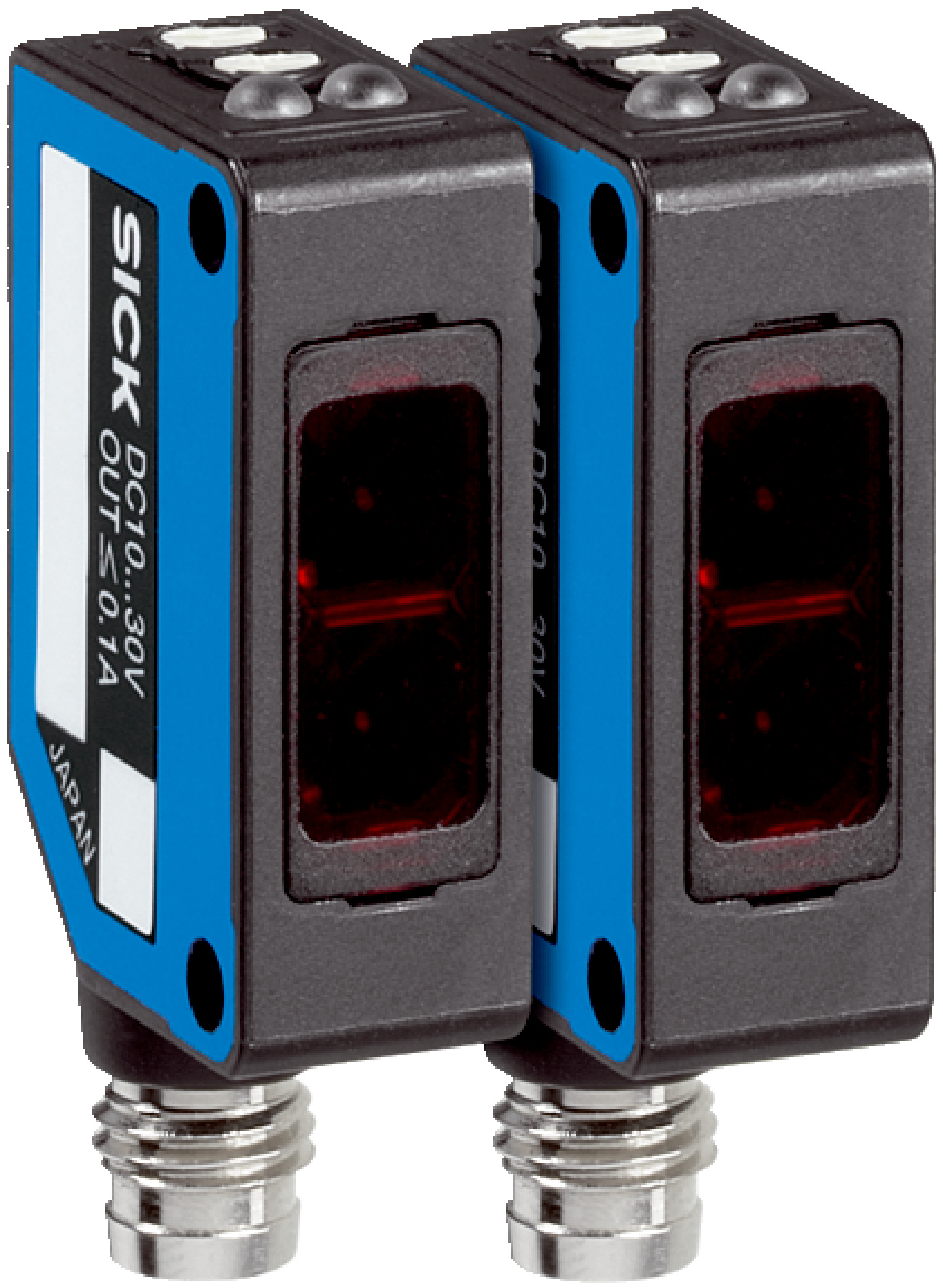

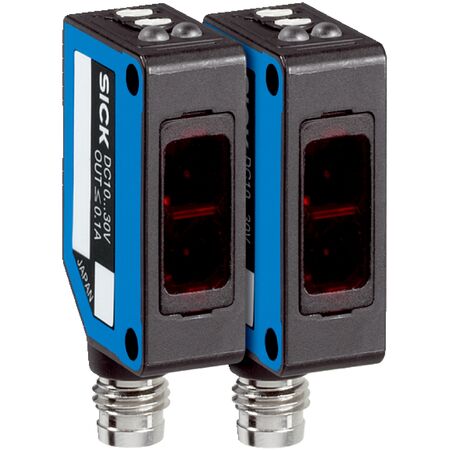

Through-beam Photoelectric Sensor WS/WE100L-F2131 | IP65 Rated | 30m Sensing Range | 2000 Hz Switching Frequency | by SICK
The WS/WE100L-F2131 Through-beam Photoelectric Sensor is designed for high-speed object detection in industrial automation. With a sensing range of up to 30 meters and a robust IP65 enclosure, it ensures reliable performance in various environments. Featuring a high switching frequency of 2000 Hz and a visible red laser light, this sensor is perfect for detecting small objects in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤15 mA (sender), ≤20 mA (receiver)
- Switching output: PNP with max output current ≤100 mA
- Response time: <0.25 ms
- Switching frequency: 2000 Hz
- Light source: Laser, wavelength 650 nm
- Light spot size: Ø 30 mm at 30 m
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP65
- Connection type: M8, 3-pin connector
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Laser class: 1
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 30 meters
- Rectangular housing design with IP65 enclosure rating
- Adjustable potentiometer with 270° rotation
- High switching frequency of 2000 Hz
- Light/dark switching mode selectable via rotary switch
- Robust plastic housing with stainless steel mounting brackets
- Laser class 1 safety certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical sensor installation to ensure proper alignment and compliance with safety standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing processes
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with ≤15 mA sender and ≤20 mA receiver
- Durable materials and long service life reduce waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK WS/WE100L-F2131 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and high-speed object detection applications.
