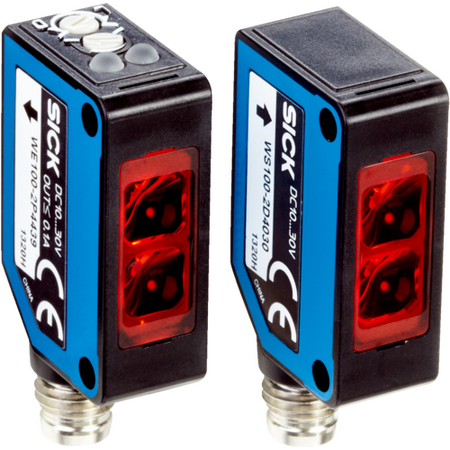

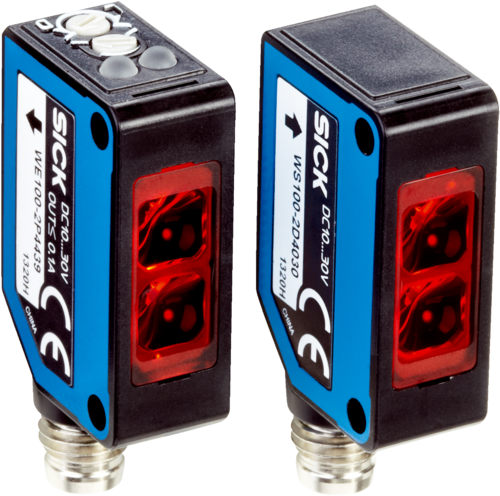

Through-beam Photoelectric Sensor WS WE100-2P4439 IP67 Rated 20m Sensing Range SICK

BRAND: SICK
SKU: 6052368
$375.80 List price: $472.40
+ −
30 Days Return Electricians Unlock Trade Access
The Through-beam Photoelectric Sensor WS WE100-2P4439 is designed for industrial automation, featuring a sensing range of up to 20 meters and a high switching
Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Power consumption sender: ≤ 15 mA
  • Power consumption receiver: ≤ 20 mA
  • Switching output: PNP
  • Switching mode: Light/dark switching selectable
  • Response time: ≤ 0.5 ms
  • Switching frequency: 1000 Hz
  • Connection type: Male connector M8, 4-pin
  • Protection class: III
  • Housing material: Plastic (ABS/PC/POM)
  • Optics material: Plastic (PMMA)
  • Enclosure rating: IP67
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -40 °C to +70 °C
  • Wave length: 632 nm
  • Light spot size at 12 m: Ø 850 mm
  • Dimensions (H x L x W): 31mm x 20mm x 11mm
  • Weight: 0.1 kg
Key Features
  • Through-beam photoelectric sensing principle
  • Rectangular housing design with visible red LED light source
  • Sensing range up to 20 meters
  • Adjustable sensitivity via 270° potentiometer
  • High switching frequency of 1000 Hz
  • IP67 rated enclosure for dust and water protection
  • Robust plastic housing with stainless steel mounting brackets
  • Light/dark switching mode selectable
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with electrical standards.
Applications
  • Industrial automation for object detection
  • Safety and monitoring in manufacturing processes
  • Material handling and packaging systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption with efficient LED light source
  • Durable design reduces waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK WS/WE100-2P4439 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
