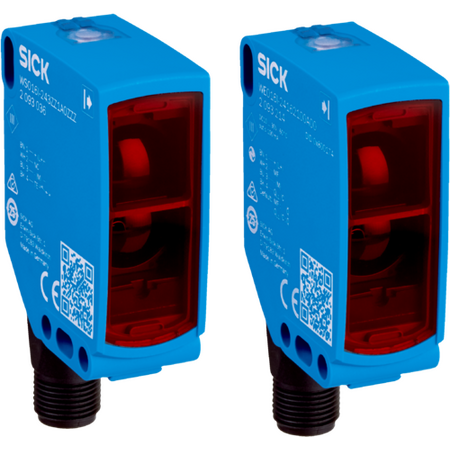

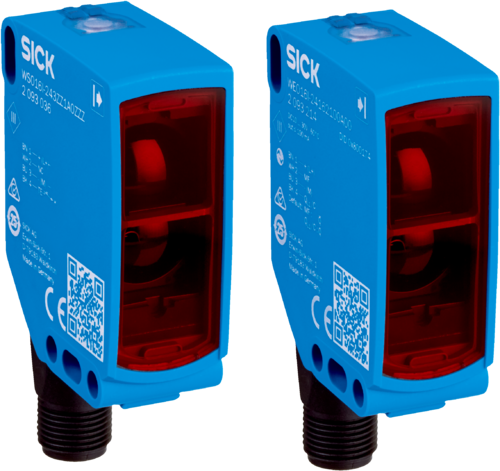

Through-Beam Photoelectric Sensor WSE16P-24162100A00 45m Sensing Range IP66 IP67 IP69 Rated Variant-1 SICK
The WSE16P-24162100A00 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 45 meters with a recommended
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 to 45 m, recommended 0 to 30 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Output type: 2 complementary push-pull PNP/NPN outputs
- Switching mode: Light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®
- Front screen material: Plastic PMMA
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 45 meters with recommended best performance up to 30 meters
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- Complementary push-pull PNP/NPN outputs with light/dark switching
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2,000 Hz
- Status indication via blue, green, and yellow LEDs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration using IO-Link for optimal sensor performance and safety.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Warranty terms as provided by SICK, typically 1-3 years depending on region and application.
Available Now
The SICK WSE16P-24162100A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
