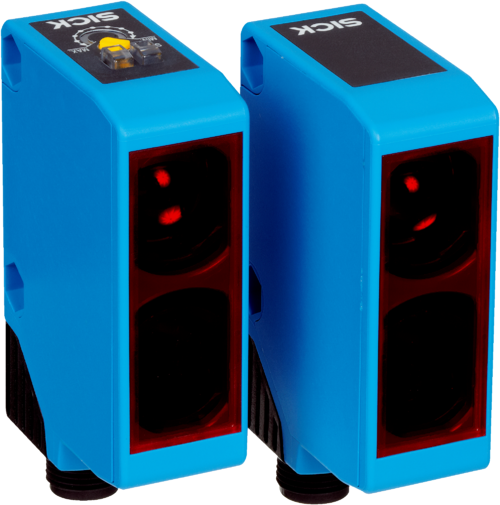

Through-Beam Photoelectric Sensor WSE250-2P2431 IP67 Rated 40m Sensing Range SICK

BRAND: SICK
SKU: 6044705
$708.10 List price: $890.00
+ −
30 Days Return Electricians Unlock Trade Access
The WSE250-2P2431 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 40 meters and a fast response time of
Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Power consumption sender and receiver: 20 mA each
  • Switching output: PNP with max output current ≤ 100 mA
  • Switching mode: Light/dark switching selectable
  • Response time: ≤ 0.5 ms
  • Switching frequency: 1,000 Hz
  • Angle of reception: 20°
  • Connection type: Male M12, 4-pin connector
  • Protection class: III
  • Enclosure rating: IP67
  • Operating temperature range: -25 °C to +55 °C
  • Storage temperature range: -40 °C to +70 °C
  • Housing material: Plastic ABS
  • Optics material: Plastic PMMA
  • EMC compliance: EN 60947-5-2
  • Includes BEF-W250 mounting bracket
  • Dimensions (H x L x W): 65mm x 44mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Through-beam photoelectric sensing principle
  • Rectangular housing design with visible red LED light source
  • Sensing range up to 40 meters, max 50 meters
  • Adjustable focus with approx. 2° angle of dispersion
  • Light/dark switching mode selectable via control cable
  • High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
  • IP67 rated enclosure for dust and water protection
  • Robust plastic ABS housing with PMMA optics
  • Male M12 4-pin connector for easy connection
  • Includes BEF-W250 mounting bracket
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
  • Industrial automation for object detection
  • Safety and monitoring in manufacturing processes
  • Material handling and conveyor systems
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Low power consumption with 20 mA current draw
  • Durable design reduces waste and replacement frequency
  • Complies with China-RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK WSE250-2P2431 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
