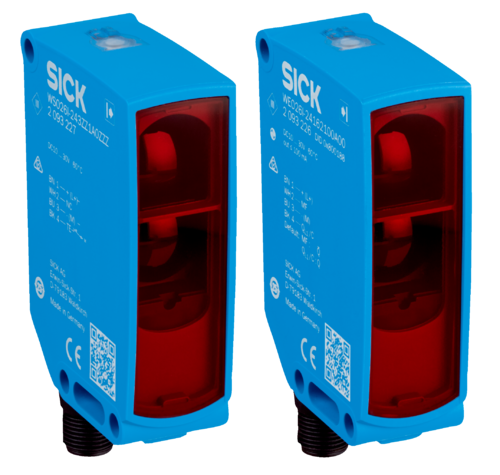

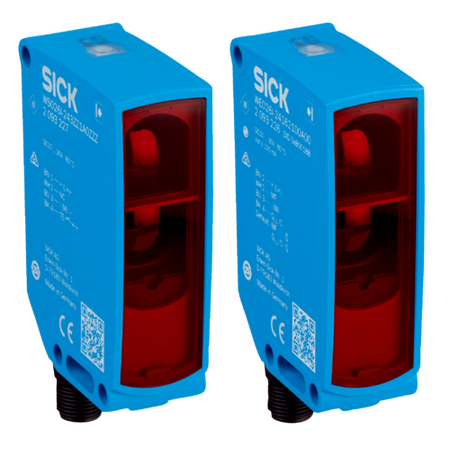

Through-Beam Photoelectric Sensor WSE26P 60m Sensing Range IP66 IP67 IP69 Protection SICK
The WSE26P through-beam photoelectric sensor offers a remarkable sensing range of up to 60 meters, making it ideal for industrial automation and safety
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Through-beam sensor, photoelectric sensor, SICK WSE26P sensor, industrial object sensor
Technical Specifications
- Sensing range: 0 m to 60 m, recommended 0 m to 50 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: Ø 115 mm at 15 m distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: up to 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL® with PMMA front screen
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.16 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 60 m
- PinPoint LED visible red light with 635 nm wavelength
- High precision with point-shaped light spot and minimal beam dispersion
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- LED indicators for alignment aid, operating status, and light beam status
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration using IO-Link for optimal sensor performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life reduces power consumption
- Durable design minimizes waste and replacement frequency
- Compliant with environmental regulations including China RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE26P-24162100A00 through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications.
