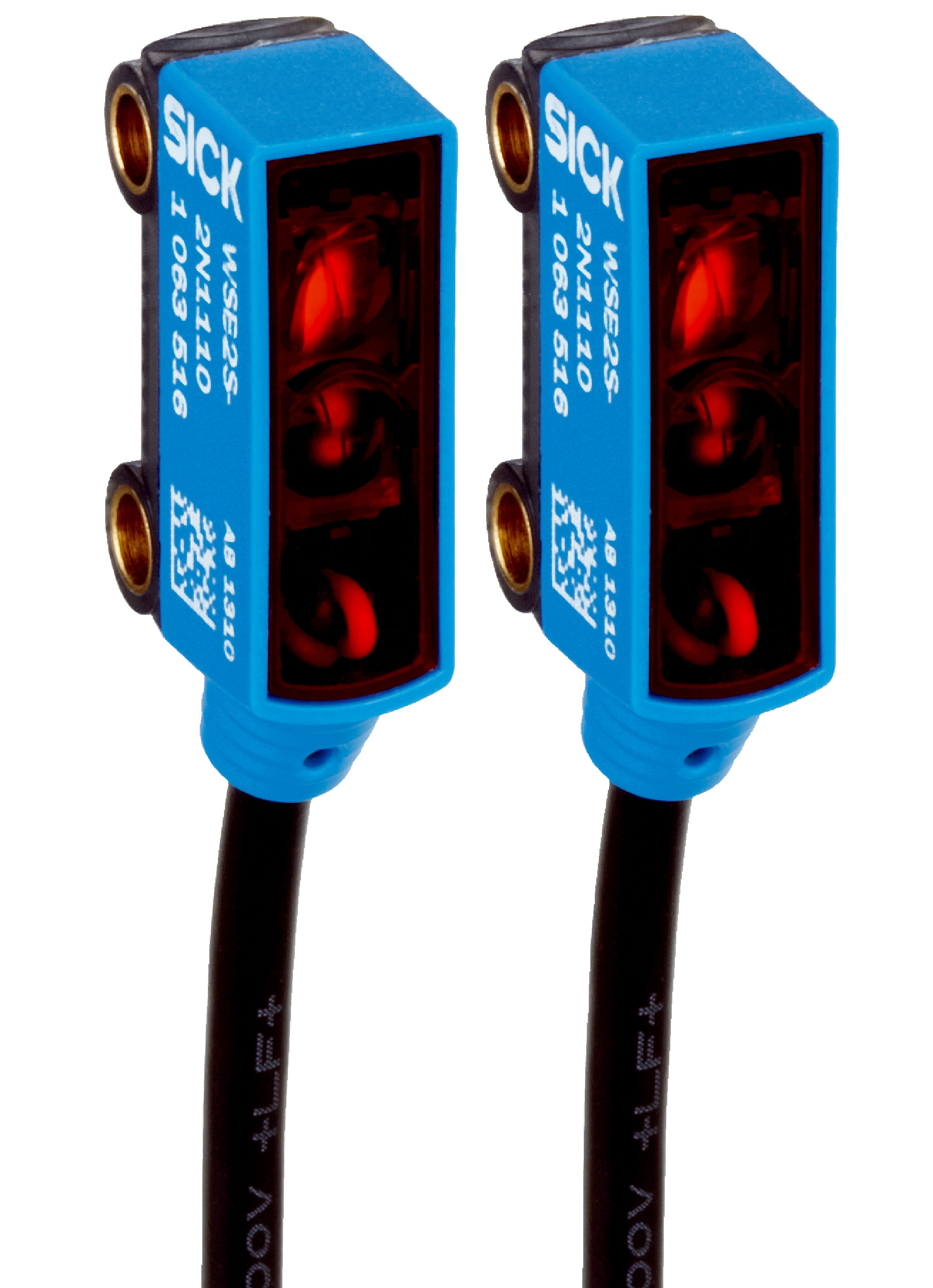

Through-Beam Photoelectric Sensor WSE2S-2F1430 | IP67 Rated | 2m Sensing Range | 1,200 Hz Switching Frequency | by SICK
The WSE2S-2F1430 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 2 meters and a high switching frequency of 1,200 Hz. With an IP67 rated enclosure, it ensures reliable performance in dusty and wet environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, dark switching
- Maximum output current: ≤ 50 mA
- Response time: < 0.4 ms
- Switching frequency: 1,200 Hz
- Cable: 3-wire, 5 m length, PVC material
- Circuit protection: A, B, D types
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Light wavelength: 640 nm
- Light spot size at 1500 mm: Ø 65 mm
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 2 meters
- Rectangular housing design with PinPoint LED light source
- High switching frequency of 1,200 Hz
- IP67 rated enclosure for dust and water protection
- Dark switching mode with PNP output
- Robust plastic housing made of ABS/PC and optics of PMMA
- Wide ambient operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WSE2S-2F1430 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
