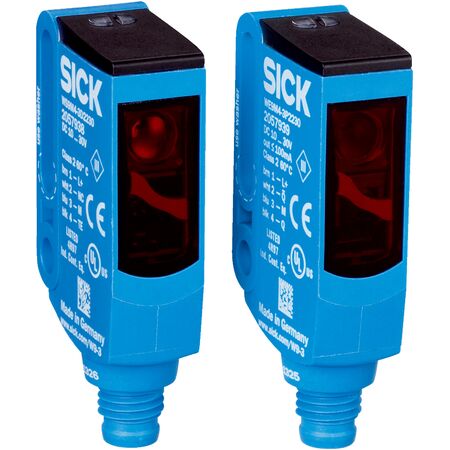

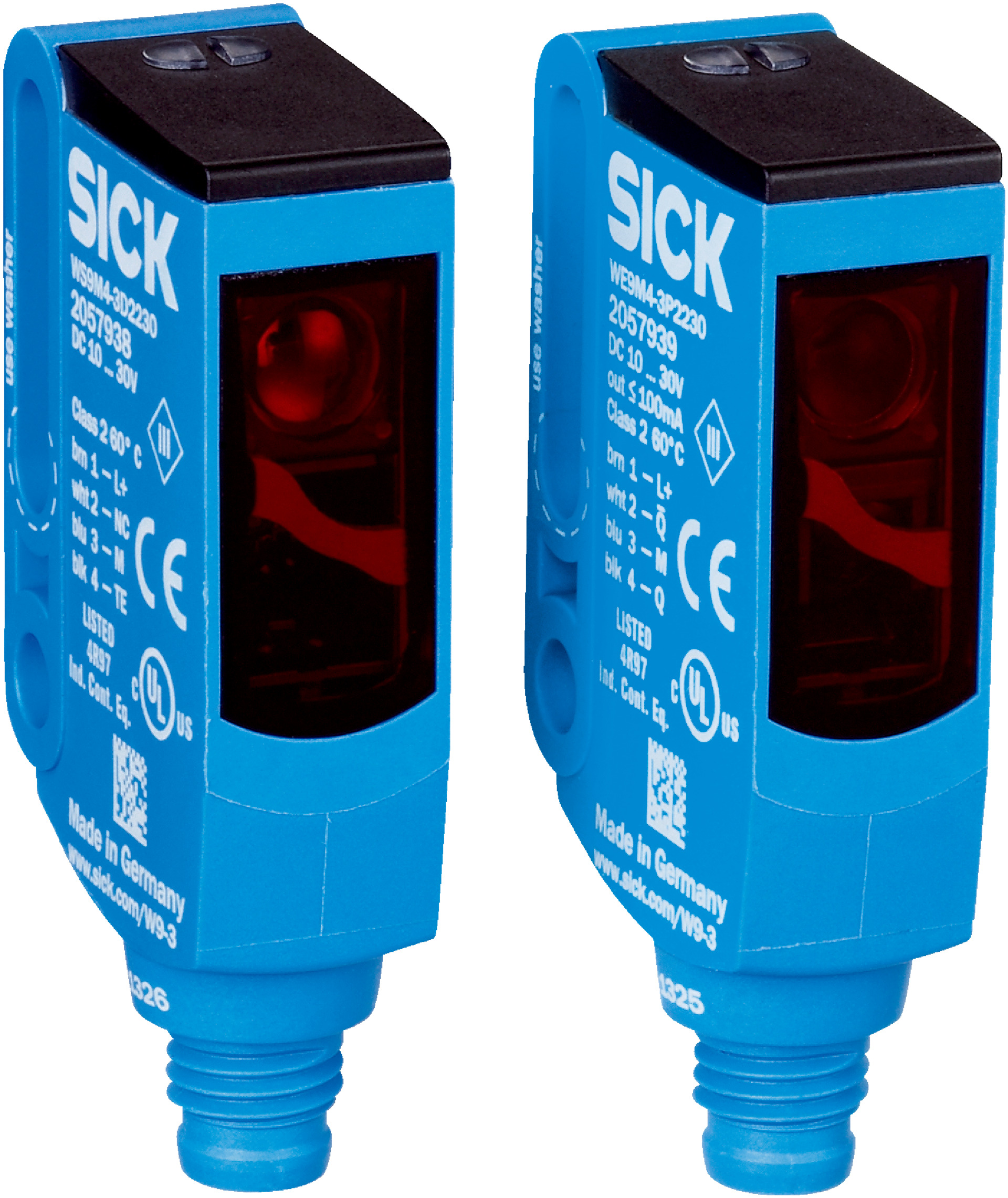

Through-Beam Photoelectric Sensor WSE9M4-3P2230 | IP66/IP67/IP69K Rated | 7m Sensing Range | 1000 Hz Switching Frequency | by SICK
The WSE9M4-3P2230 Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 7 meters and a high switching frequency of 1,000 Hz. With an IP66/IP67/IP69K rating, it excels in harsh environments, ensuring reliable object detection and safety monitoring in manufacturing processes. Built for durability and low power consumption, this sensor is perfect for material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE9M4-3P2230 | IP66/IP67/IP69K Rated | 7m Sensing Range | 1000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1051912
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Industrial sensor, SICK WSE9M4 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Light source: PinPoint LED, 650 nm wavelength
- Enclosure rating: IP66, IP67, IP69K
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Protection class: III
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- Rectangular housing design with M4 mounting hole
- PinPoint LED light source with 650 nm wavelength
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- Protection rating IP66, IP67, IP69K for harsh environments
- Operating temperature range from -40°C to +60°C
- Circuit protection and light/dark switching mode
- Connection via male M8 4-pin connector
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 30 mA supports energy efficiency
- High protection ratings prevent environmental damage and sensor failure
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE9M4-3P2230 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
