THTS-1AA520506MZ | Temperature sensors

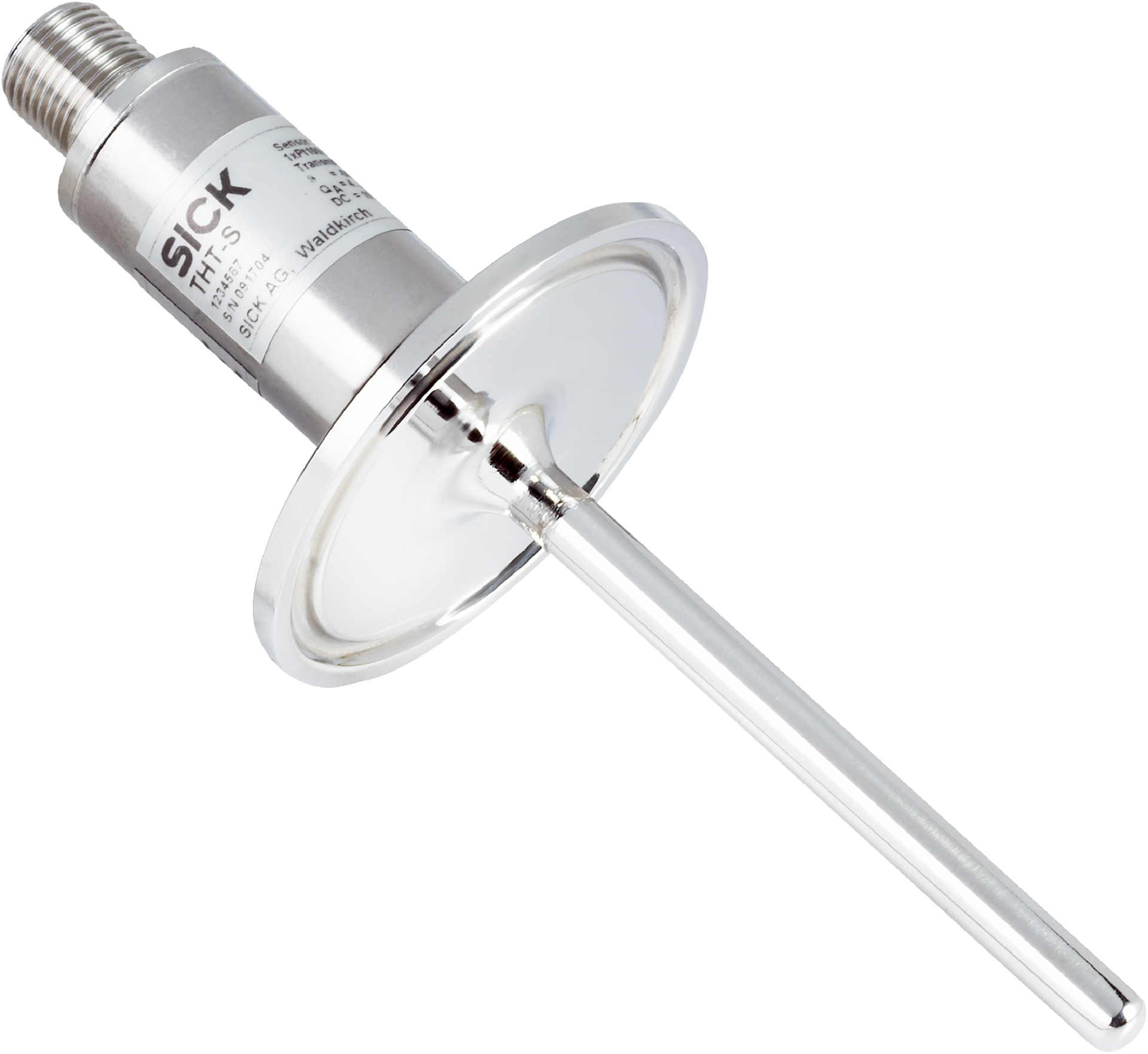

The SICK THTS-1AA520506MZ temperature sensor features a Pt1000 sensor element with a measuring range of –50 °C to +150 °C, designed for hygienic process connections with robust stainless steel housing and IP67/IP69 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: THTS-1AA520506MZ | Temperature sensors
Brand: SICK
SKU: 6047721
Alternatively Known As: Pt1000 Temperature Sensor, Industrial Temperature Probe, Hygienic Temperature Sensor, 4-20mA Temperature Transmitter
Technical Specifications
- Measuring range: –50 °C to +150 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 25 with union nut
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 40 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: ≤ 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Ambient temperature range: –40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Dimensions (H x L x W): 150mm x 150mm x 25mm
- Weight: 0.3 kg
Key Features
- Measuring range from –50 °C to +150 °C
- Pt1000 sensor element for precise temperature measurement
- 2-wire output signal 4 mA to 20 mA
- Conical coupling (DIN 11851) DN 25 with union nut for hygienic process connection
- Stainless steel 1.4435 / 316L wetted parts with surface roughness Ra ≤ 0.8 µm
- IP67 and IP69 rated enclosure for protection against dust and water
- Supply voltage 10 V DC to 35 V DC with maximum current consumption ≤ 30 mA
- Electrical safety with protection class III and reverse polarity protection
- Fast initialization time of max. 4 seconds
- Shock resistance up to 50 g, 6 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in chemical and food industries
- Use in environments requiring hygienic process connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption design minimizes energy use
- High accuracy reduces process waste and improves efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK THTS-1AA520506MZ temperature sensor is available for immediate purchase, ideal for industrial and hygienic temperature measurement applications.
