THTS-1AAC20506MZ | Temperature sensors

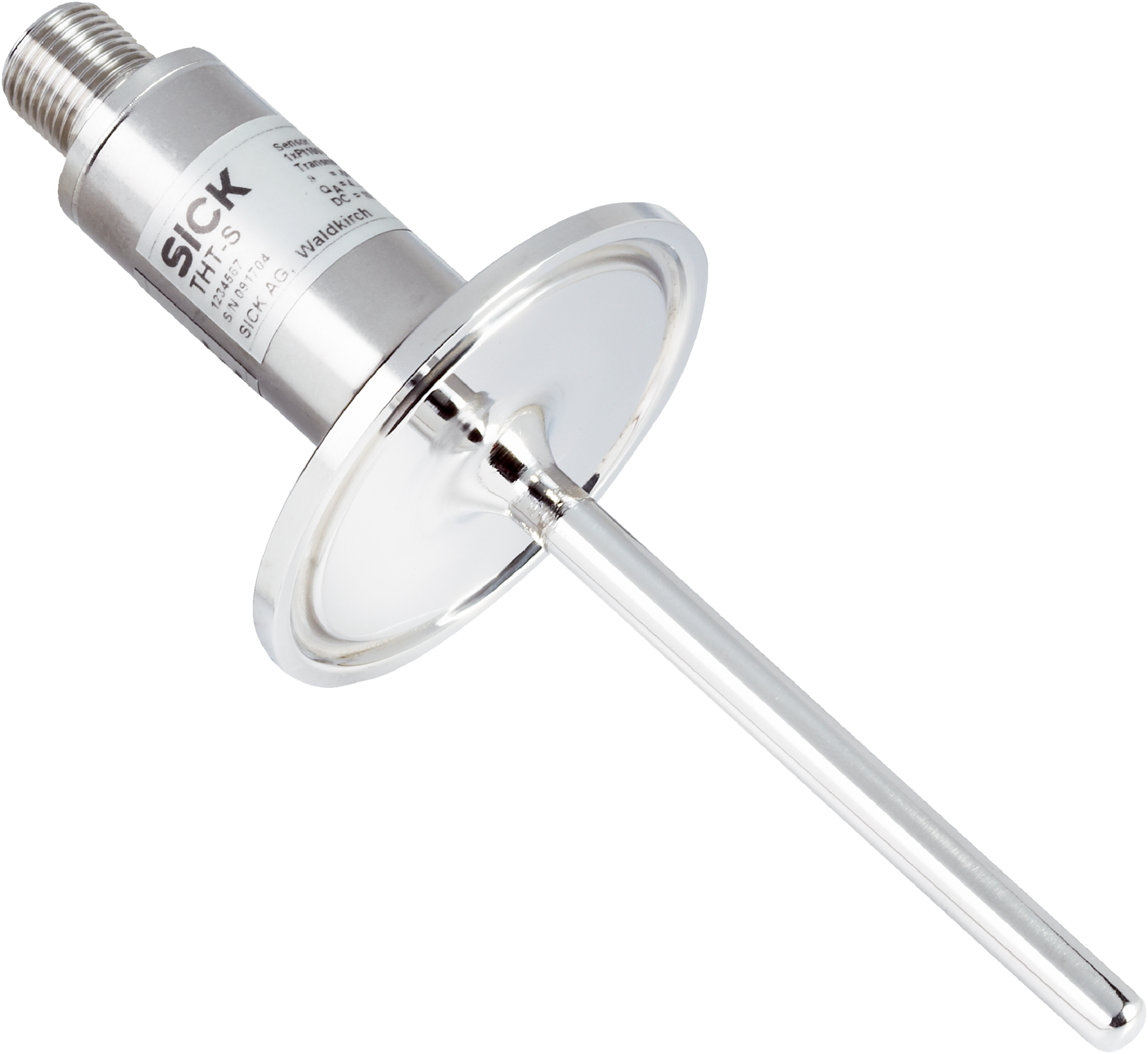

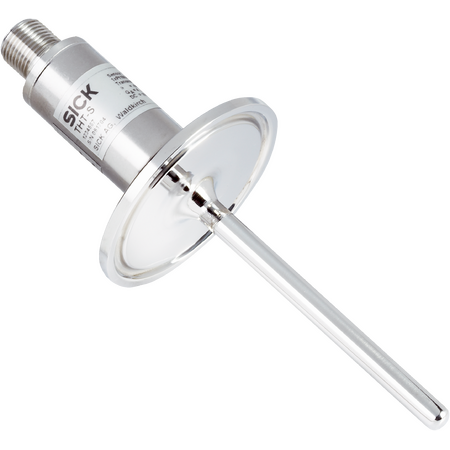

The SICK THTS-1AAC20506MZ temperature sensor features a Pt1000 element with a measuring range of –50 °C to +150 °C, designed for precise industrial temperature monitoring with robust stainless steel construction and hygienic clamp connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: THTS-1AAC20506MZ | Temperature sensors
Brand: SICK
SKU: 6047712
Alternatively Known As: Pt1000 Temperature Sensor, Clamp Temperature Sensor, Industrial Temperature Probe
Technical Specifications
- Measuring range: –50 °C to +150 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Clamp (ISO 2852) DN 12, DN 12.7, DN 17.2, DN 21.3
- Insertion length/diameter of probe: 50 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: ≤ 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Ambient temperature: –40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 120mm x 120mm x 20mm
- Weight: 0.2 kg
Key Features
- Measuring range from –50 °C to +150 °C
- Pt1000 sensor element for high accuracy
- 2-wire 4 mA to 20 mA output signal
- Clamp process connection compliant with ISO 2852
- Stainless steel housing and wetted parts for corrosion resistance
- IP67 and IP69 rated enclosure for harsh environments
- Supply voltage range from 10 V DC to 35 V DC
- Electrical safety with protection class III and reverse polarity protection
- Fast initialization time of max. 4 seconds
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry with hygienic clamp connections
- Chemical and pharmaceutical processing requiring precise temperature monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient 2-wire 4-20 mA output minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTS-1AAC20506MZ temperature sensor is available for immediate purchase, ideal for industrial and hygienic temperature measurement applications.
