THTS-1ABC32006MZ | Temperature sensors

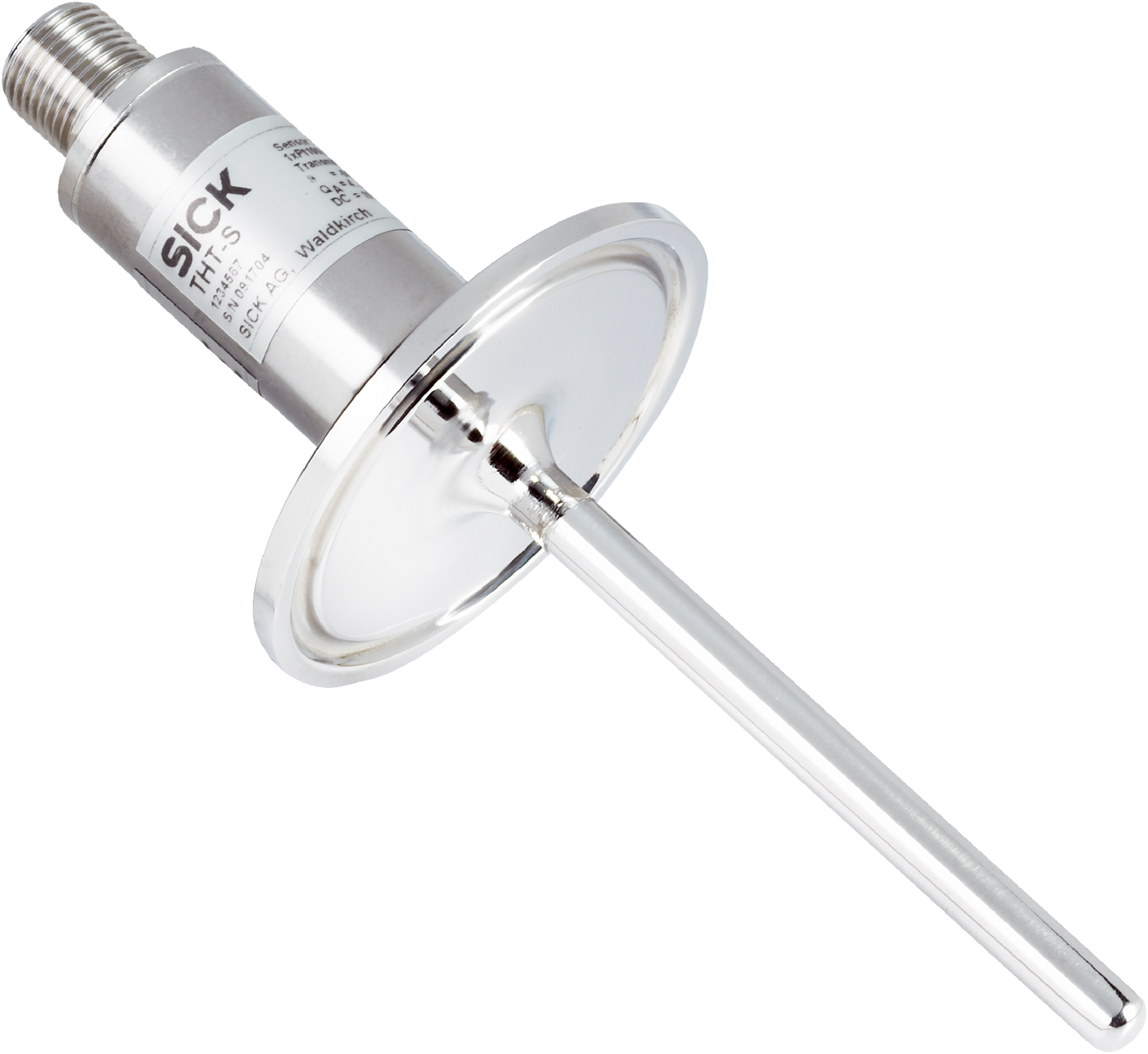

The SICK THTS-1ABC32006MZ temperature sensor features a Pt1000 element with a 4-20mA output, suitable for precise industrial temperature measurement from –50 °C to +250 °C with robust stainless steel construction and IP67/IP69 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: THTS-1ABC32006MZ | Temperature sensors
Brand: SICK
SKU: 6068735
Alternatively Known As: Pt1000 Temperature Sensor, Industrial Temperature Probe, 4-20mA Temperature Transmitter, Clamp Temperature Sensor
Technical Specifications
- Measuring range: –50 °C to +250 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Clamp (ISO 2852) DN 25, DN 33.7, DN 38
- Insertion length/diameter: 200 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: ≤ 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Ambient temperature range: –40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Relative humidity: ≤ 100%
- Initialization time: Max. 4 s
- CE conformity: 2004/108/EC, EN 61326-2-3
- Dimensions (H x L x W): 200mm x 200mm x 25mm
- Weight: 0.5 kg
Key Features
- Measuring range from –50 °C to +250 °C
- Pt1000 sensor element for high accuracy
- 2-wire 4 mA to 20 mA output signal
- Clamp process connection (ISO 2852) DN 25, DN 33.7, DN 38
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm
- IP67 and IP69 rated enclosure for robust protection
- Supply voltage 10 V DC to 35 V DC with low current consumption
- Electrical safety with protection class III and reverse polarity protection
- Fast initialization time of max. 4 seconds
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry monitoring
- Pharmaceutical and chemical processing
- HVAC systems requiring precise temperature sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption design minimizes energy use
- High accuracy reduces process waste and improves efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK THTS-1ABC32006MZ temperature sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
