THTS-1PA550506MZ | Temperature sensors

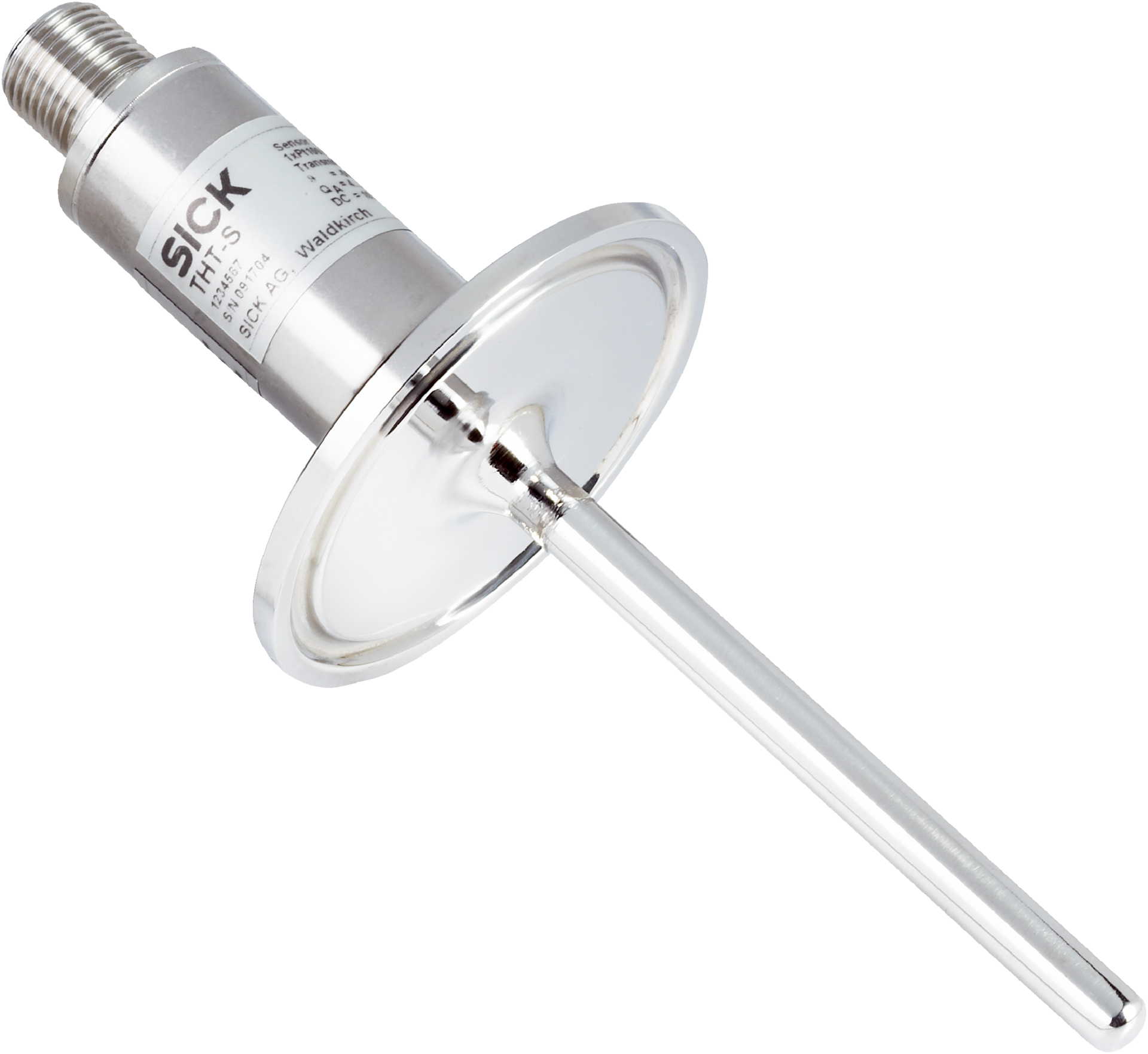

The SICK THTS-1PA550506MZ is a high-precision Pt100 temperature sensor with a 4-wire output, designed for hygienic process connections and robust industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: THTS-1PA550506MZ | Temperature sensors
Brand: SICK
SKU: 6047691
Alternatively Known As: Pt100 Temperature Sensor, Hygienic Temperature Probe, Industrial Temperature Sensor, DIN 11851 Temperature Sensor
Technical Specifications
- Measuring range: –50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 25 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Shock resistance: 50 g, 6 ms
- Ambient temperature range: –40 °C to +85 °C
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Measuring range from –50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal for high accuracy
- Conical coupling (DIN 11851) DN 50 with union nut for hygienic process connection
- Stainless steel 1.4435 / 316L wetted parts with surface roughness Ra ≤ 0.8 µm
- IP67 and IP69 rated enclosure for protection against dust and water ingress
- Class A accuracy according to IEC 60751
- Fast response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Electrical safety protection class III with dielectric strength 500 V AC
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hygienic process connections and electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry with hygienic process connections
- Chemical and pharmaceutical industries requiring precise temperature monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction ensures long service life reducing waste
- High accuracy reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTS-1PA550506MZ Temperature Sensor is available for immediate purchase, ideal for industrial and hygienic temperature measurement applications.
