THTS-1PB550506MZ | Temperature sensors

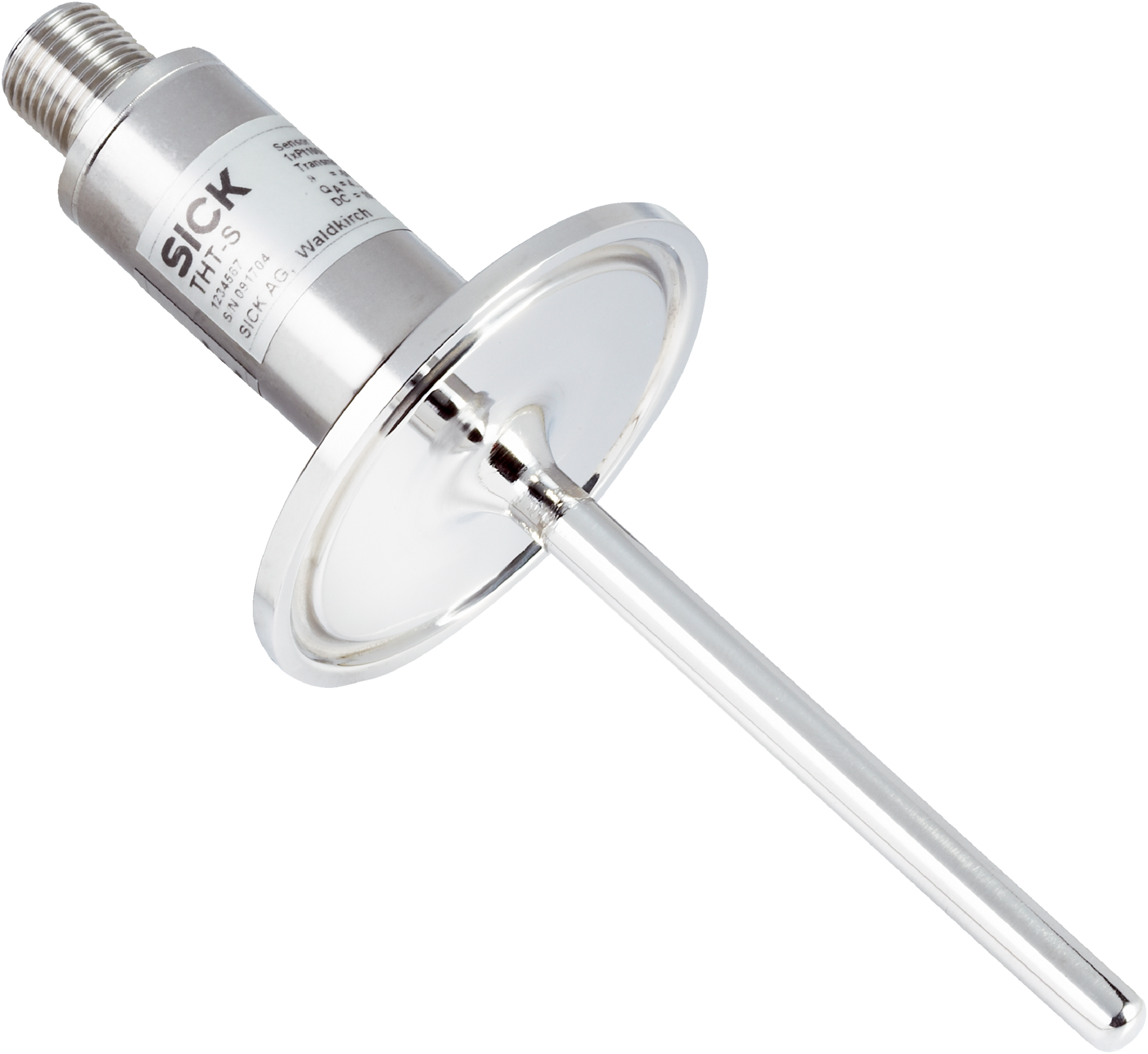

The SICK THTS-1PB550506MZ is a high-accuracy Pt100 temperature sensor with a measuring range of –50 °C to +250 °C, designed for industrial applications with robust stainless steel construction and IP67/IP69 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: THTS-1PB550506MZ | Temperature sensors
Brand: SICK
SKU: 6047708
Alternatively Known As: Pt100 Temperature Sensor, Industrial Temperature Probe, DIN 11851 Temperature Sensor, 4-wire Temperature Sensor
Technical Specifications
- Measuring range: –50 °C to +250 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Conical coupling (DIN 11851) DN 50 with union nut
- Seal: Without seal
- Insertion length/diameter of probe: 50 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 25 bar
- Pressure resistance: Max. 25 bar at room temperature
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67, IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: Max. 4 s
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Ambient temperature: –40 °C to +85 °C
- Storage and transport temperature: –40 °C to +85 °C
- Shock resistance: 50 g, 6 ms (IEC 60068-2-27)
- Relative humidity: ≤ 100%
- China RoHS compliant
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Measuring range from –50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal
- Conical coupling (DIN 11851) DN 50 with union nut for process connection
- Stainless steel 1.4435 / 316L wetted parts with surface roughness Ra ≤ 0.8 µm
- Maximum process pressure up to 25 bar
- Housing made of stainless steel (CrNi)
- M12 round connector, 4-pin connection type
- Enclosure rating IP67 and IP69 for high protection
- Class A accuracy according to IEC 60751
- Fast response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Electrical safety protection class III with dielectric strength 500 V AC
- Shock resistance 50 g, 6 ms according to IEC 60068-2-27
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and sealing according to industrial standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in chemical and pharmaceutical industries
- Use in food and beverage processing plants
- Suitable for harsh environments requiring IP67/IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- High accuracy reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTS-1PB550506MZ Temperature Sensor is available for immediate purchase, ideal for industrial temperature monitoring and process control applications.
