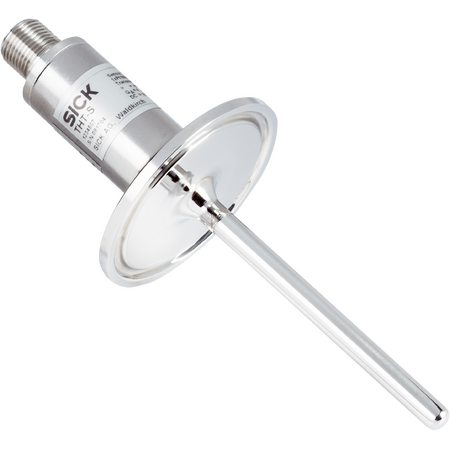

THTS-1PBC20506MZ | Temperature sensors
The SICK THTS-1PBC20506MZ temperature sensor features a Pt100 4-wire sensor element with a measuring range of –50 °C to +250 °C, designed for hygienic clamp connections and robust industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: THTS-1PBC20506MZ | Temperature sensors
Brand: SICK
SKU: 6047695
Alternatively Known As: Pt100 Temperature Sensor, Hygienic Clamp Temperature Sensor, Industrial Temperature Probe, 4-wire Temperature Sensor
Technical Specifications
- Measuring range: –50 °C to +250 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Clamp (ISO 2852) DN 12, DN 12.7, DN 17.2, DN 21.3
- Seal: Without seal
- Insertion length/diameter of probe: 50 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector x 1, 4-pin
- Enclosure rating: IP67, IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: Max. 4 seconds
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Ambient temperature: –40 °C to +85 °C
- Storage temperature: –40 °C to +85 °C
- Shock resistance: 50 g, 6 ms (IEC 60068-2-27)
- Relative humidity: ≤ 100%
- China RoHS compliant
- Dimensions (H x L x W): 100mm x 100mm x 20mm
- Weight: 0.2 kg
Key Features
- Measuring range from –50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal for high accuracy
- Clamp process connection (ISO 2852) suitable for hygienic applications
- Stainless steel 1.4435 / 316L wetted parts with Ra ≤ 0.8 µm surface finish
- IP67 and IP69 rated enclosure for protection against dust and water
- Electrical safety protection class III with dielectric strength of 500 V AC
- Fast initialization time of max. 4 seconds
- Shock resistant up to 50 g, 6 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry with hygienic clamp connections
- Pharmaceutical and chemical processing requiring precise temperature monitoring
- General temperature sensing in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- High accuracy reduces energy waste by optimizing process control
- RoHS compliant, minimizing hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTS-1PBC20506MZ temperature sensor is available for immediate purchase, ideal for industrial and hygienic temperature measurement applications.
