THTS-1PBVN0506MZ | Temperature sensors

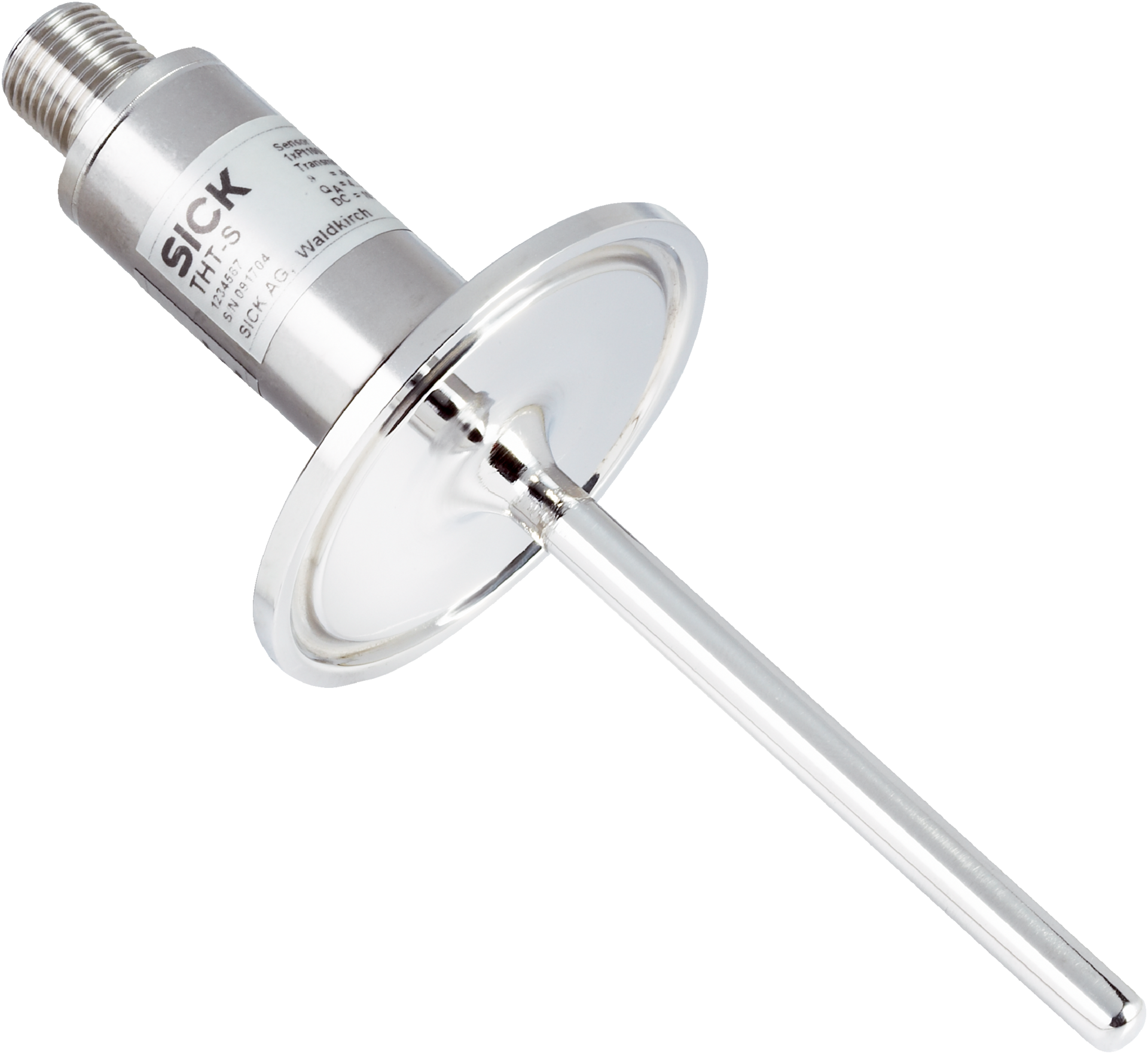

The SICK THTS-1PBVN0506MZ is a high-precision Pt100 temperature sensor with a measuring range of -50 °C to +250 °C, designed for industrial applications requiring robust and hygienic temperature measurement solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: THTS-1PBVN0506MZ | Temperature sensors
Brand: SICK
SKU: 6047703
Alternatively Known As: Pt100 Temperature Sensor, Industrial Temperature Probe, 4-wire Temperature Sensor, Stainless Steel Temperature Sensor
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Varivent connection type N, DN 40
- Insertion length/diameter of probe: 50 mm / 6 mm
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Initialization time: Max. 4 s
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Ambient temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms (IEC 60068-2-27)
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 50mm x 100mm x 40mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt100 sensor element with 4-wire output signal for high accuracy
- Stainless steel 1.4435 / 316L wetted parts with surface roughness Ra ≤ 0.8 µm
- Process connection via Varivent type N, DN 40
- IP67 and IP69 rated enclosure for protection against dust and water
- Electrical safety protection class III with dielectric strength of 500 V AC
- Fast response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Shock resistant up to 50 g, 6 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial temperature sensors and electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in chemical and pharmaceutical industries
- Use in food and beverage processing plants
- Suitable for environments requiring hygienic and corrosion-resistant sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- High accuracy reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTS-1PBVN0506MZ temperature sensor is available for immediate purchase, ideal for industrial and hygienic temperature measurement applications.
