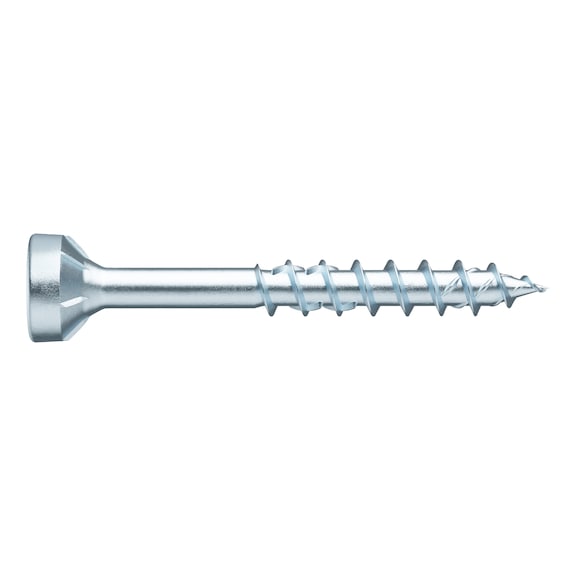

Timber Screw ASSY® 4 WW CSMR 60 | Zinc Plated | Countersunk Milling Head | @Pack of 100 | by Wurth
The ASSY® 4 WW CSMR 60 timber screw is designed for robust use in timber construction, featuring a zinc-plated finish and a countersunk milling head for easy installation. Ideal for wood-to-wood connections, this screw ensures maximum load transmission and stability, making it perfect for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Timber Screw ASSY® 4 WW CSMR 60 | Zinc Plated | Countersunk Milling Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 190653120
Alternatively Known As: Timber screw, Wood screw, Countersunk wood screw, Partial thread screw, Zinc plated timber screw, Milling head screw
Technical Specifications
- Nominal diameter: 5 mm
- Length: 120 mm
- Thread length: 62 mm
- Head type: Countersunk milling head with milling edges
- Head diameter: 9.5 mm
- Head height: 4.7 mm
- Internal drive: RW40
- Thread type: Wood screw thread, coarse thread
- Thread design: Partial thread
- End milling cutter: Yes
- Core diameter: 3.2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL, wood with high branch content
- Suitable machines: Würth BS 14-A Combi, Würth BS 18-A Power
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.7mm x 120mm x 9.5mm
- Weight: 0.05 kg
Key Features
- Universal partial-thread screw for robust use in timber construction or temporary anchors in non-structural systems.
- Large RW recess ensures maximum load transmission for fast, gap-free fastening of wood-to-wood connections in dry indoor or wet areas.
- Ideal power transmission thanks to RW drive with larger contact area at the bit.
- More stability, one-handed working, precise positioning due to tight-fit recess and perfect bit fit.
- Fewer bit changes, one bit for many screw diameters; compatibility with previous AW drive.
- Easy countersinking in hard wood surfaces with slightly smaller 60° countersunk head and increased head height.
- Significant reduction in force required when fastening due to milling shank displacement effect.
- Minimized risk of screw breakage due to high breaking torque.
- Reduced risk of injury from protruding metal chips due to integration of milling shank into thread.
- High protection of application tools; no over-tightening or stripping and high feed.
- Higher power transmission in hardwoods due to reinforced, asymmetrical thread flank geometry of coarse thread.
- Better anchoring thanks to higher thread flanks and smooth thread start for optimized engagement.
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct fastening and structural integrity in timber applications.
Applications
- Wood construction
- Element construction
- Timber construction
- Formwork
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances.
- Durable zinc plating extends product life reducing waste.
- Optimized thread design reduces material usage and improves fastening efficiency.
Warranty Information
Warranty as per Wurth standard terms and conditions; typically covers manufacturing defects.
Available Now
Available for immediate purchase, ideal for timber construction, formwork, and element construction applications.
