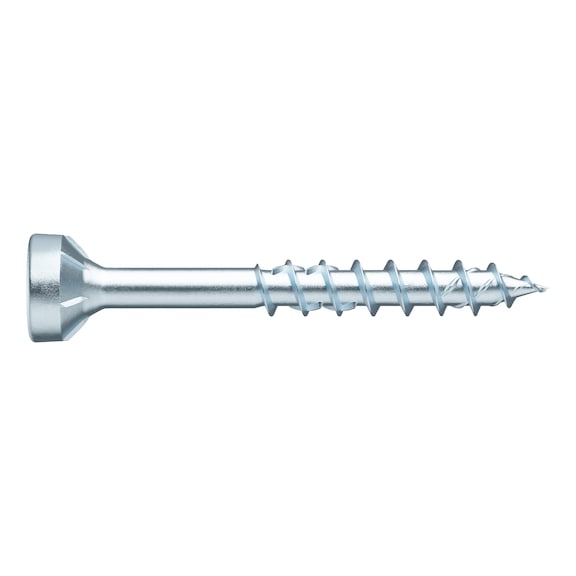

Timber Screw ASSY® 4 WW CSMR 60 | Zinc Plated | Countersunk Milling Head | @Pack of 100 | by Wurth
The ASSY® 4 WW CSMR 60 timber screw is designed for robust wood fastening, featuring a zinc-plated surface and a countersunk milling head for easy installation. Ideal for timber construction and wood-to-wood connections, this screw ensures high breaking torque and minimizes splitting, making it perfect for both indoor and wet area applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Timber Screw ASSY® 4 WW CSMR 60 | Zinc Plated | Countersunk Milling Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 19065390
Alternatively Known As: Timber screw, Wood screw, Countersunk wood screw, Zinc plated timber screw, Partial thread wood screw
Technical Specifications
- Nominal diameter: 5 mm
- Length: 90 mm
- Thread length: 47 mm
- Head type: Countersunk milling head with milling edges
- Head diameter: 9.5 mm
- Head height: 4.7 mm
- Internal drive: RW40
- Thread type: Wood screw thread, coarse thread, partial thread
- End milling cutter: Yes
- Core diameter: 3.2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, derived timber products, softwood, plywood, hardwood, LVL, wood with high branch content
- Suitable machines: Würth BS 14-A Combi, Würth BS 18-A Power
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.7mm x 90mm x 9.5mm
- Weight: 0.05 kg
Key Features
- Universal partial-thread screw for robust timber use
- Large RW recess for maximum load transmission
- Powerful and precise RW drive with tight-fit recess
- Easy countersinking in hard wood surfaces
- 60° countersunk head with increased height for power transmission
- Displacement milling effect reduces splitting
- High breaking torque minimizes screw breakage
- Integrated milling shank reduces injury risk from metal chips
- Reinforced asymmetrical thread flank geometry for better anchoring
- Smooth thread start for optimized fastening
Professional Installation Requirements
- Installation by professionals or skilled workers recommended for optimal fastening and safety.
Applications
- Wood fastening in timber construction
- Temporary anchors in non-structural systems
- Wood-to-wood connections in dry indoor or wet areas
- Element construction, formwork, and timber construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY® 4 WW CSMR 60 timber screws are available for immediate purchase, ideal for timber construction and formwork applications.
