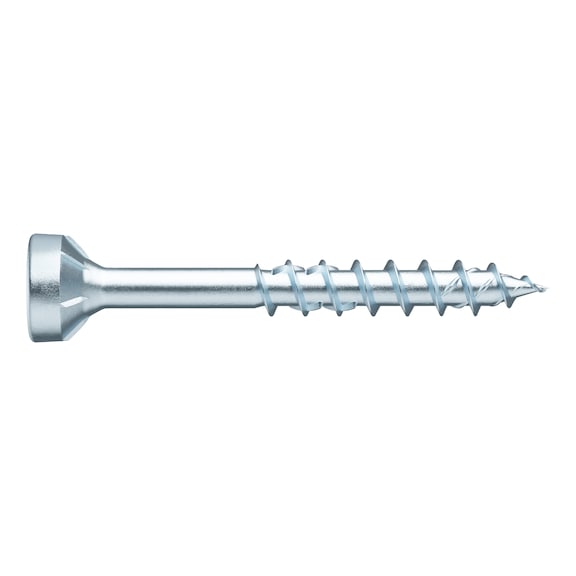

Timber Screw ASSY® 4 WW CSMR 60 | Zinc Plated | Countersunk Milling Head | @Pack of 250 | by Wurth
Timber screws ASSY® 4 WW CSMR 60 are designed for robust use in timber construction, featuring a zinc-plated finish and a countersunk milling head for easy installation. Ideal for wood-to-wood connections and formwork applications, these screws ensure maximum load transmission and reduced splitting, making them perfect for both indoor and wet area use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Timber Screw ASSY® 4 WW CSMR 60 | Zinc Plated | Countersunk Milling Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 19065345
Alternatively Known As: Timber screws, Wood screws, Countersunk wood screws, Zinc plated timber screws, Partial thread wood screws
Technical Specifications
- Nominal diameter: 5 mm
- Length: 45 mm
- Thread length: 30 mm
- Head type: Countersunk milling head with milling edges
- Head diameter: 9.5 mm
- Head height: 4.7 mm
- Internal drive: RW40
- Thread type: Wood screw thread, coarse thread, partial thread
- Core diameter: 3.2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, derived timber products, softwood, plywood, hardwood, LVL, wood with high branch content
- Suitable machines: Würth BS 14-A Combi, Würth BS 18-A Power
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.7mm x 45mm x 9.5mm
- Weight: 0.15 kg
Key Features
- Universal partial-thread screw for robust use in timber construction
- Large RW recess ensures maximum load transmission for fast, gap-free fastening
- Ideal power transmission with RW drive and larger contact area at the bit
- Tight-fit recess for precise positioning and fewer bit changes
- Easy countersinking in hard wood surfaces
- 60° countersunk head with increased head height for enhanced power transmission
- Displacement milling effect reduces splitting when immersing the shank
- High breaking torque minimizes risk of screw breakage
- Integration of milling shank reduces risk of injury from metal chips
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Smooth thread start for optimized fastening
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Wood fastening in timber construction
- Temporary anchors in non-structural systems
- Wood-to-wood connections in dry indoor or wet areas
- Element construction
- Formwork construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Comes with Wurth standard warranty covering manufacturing defects.
Available Now
Wurth ASSY® 4 WW CSMR 60 timber screws are available for immediate purchase, ideal for timber construction and formwork applications.
