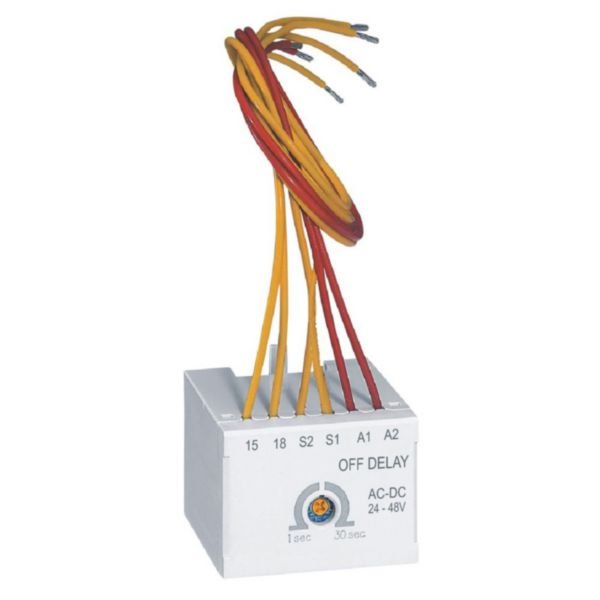

Timer CTX3 OFF Delay | 1-30 Seconds Adjustable | 24-48V AC/DC | by Legrand
The Timer CTX3 OFF Delay is an electronic timer designed for precise motor control, featuring an adjustable delay from 1 to 30 seconds and a rated voltage of 24-48V AC/DC. Ideal for tertiary and industrial installations, this timer ensures efficient operation and energy savings, making it a reliable choice for motor control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Timer CTX3 OFF Delay | 1-30 Seconds Adjustable | 24-48V AC/DC | by Legrand
Brand: Legrand
SKU: 416872
Alternatively Known As: CTX3 OFF Delay Timer, Legrand Electronic Timer, Motor Control Timer, Time Delay Relay
Technical Specifications
- Rated voltage: 24V to 48V AC (50/60Hz) and DC
- Switching function: Time-delay dropped out (OFF delay)
- Setting time range: 1 to 30 seconds
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Operating principle: Electronic
- Mounting: Front of CTX3 3P contactors (9A to 150A) and 4P contactors (40A to 135A)
- Dimensions (H x L x W): 60mm x 60mm x 35mm
- Weight: 0.1 kg
Key Features
- Electronic timer with OFF delay function
- Adjustable time delay from 1 to 30 seconds
- Rated voltage 24V to 48V AC (50/60Hz) and DC
- Designed for mounting on the front of CTX3 contactors
- Suitable for tertiary and industrial installations
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control systems and compliant with local electrical standards.
Applications
- Tertiary and industrial motor control and protection installations
- Mounting on CTX3 3P contactors from 9A to 150A and 4P contactors from 40A to 135A
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Electronic timer reduces energy waste by precise control of motor operation timing
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand Timer CTX3 OFF Delay 1-30S 24-48V AC/DC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
