Timer Relay Star Delta 24-240VAC | 0.1-600s Adjustable | DIN Rail Mount by NHP
Timer relay with 24-240VAC/DC supply and 0.1-600 seconds adjustable range—ideal for industrial automation and commercial HVAC systems. Built for precision timing, with DIN rail mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

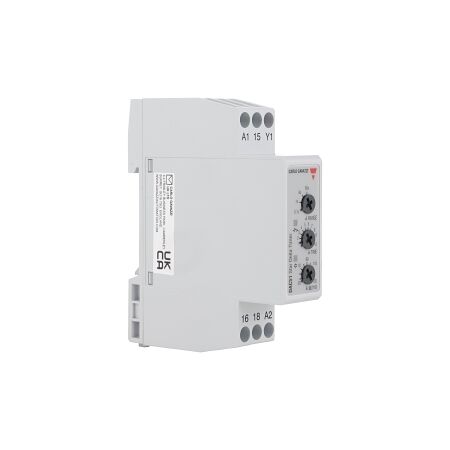

Product Name/Title: Carlo Gavazzi Timer Relay Star Delta 24-240VAC DC Supply 1 CO0.1 to 600 Seconds 17.5mm
Brand: NHP
SKU: DAC51CM24
Alternatively Known As: Timer Relay, Star Delta Timer, Carlo Gavazzi Timer
Technical Specifications
- Voltage Type: AC/DC
- Rated Control Supply Voltage (DC): 24-48 V
- Rated Control Supply Voltage (AC 60 Hz): 20.4-264 V
- Rated Control Supply Voltage (AC 50 Hz): 24-240 V
- Number of Outputs: 1 CO
- Rated Operation Current (DC 12-24 V): 0.2 A
- Rated Operation Current (DC 13-24 V): 2.5 A
- Rated Operation Current (AC 15-250 V): 2.5 A
- Type of Electric Connection: Screw connection
- Function Star Delta: Yes
- Time Setting Accuracy: 5 %
- Power Consumption: 0.5 VA
- Electrical Lifespan of Control Contacts: 400,000 cycles
- Mechanical Lifetime of Control Contacts: 20,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 70mm x 17.5mm
- Weight: 0.5 kg
Key Features
- Adjustable time range from 0.1 to 600 seconds.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay Star Delta 24-240VAC DC Supply is available now for immediate purchase. Ideal for industrial and commercial applications.
