Tinned Mechanical Shear Lug 400-630 SQMM | Copper & Aluminium Compatible | High Resistance to Clamping Force by Cabac

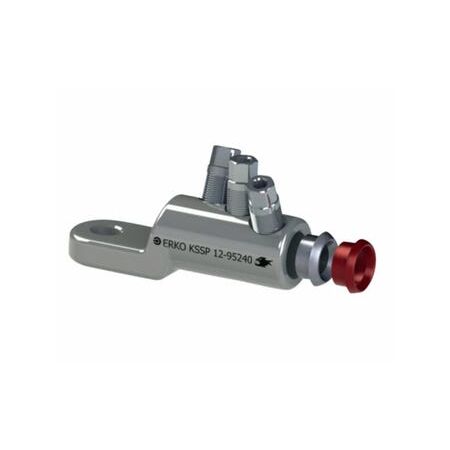

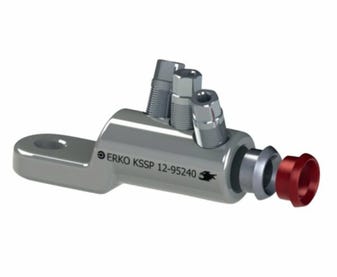

The Cabac LUG TINNED MECHANICAL SHEAR 400-630 SQMM is a tinned aluminium mechanical lug designed for reliable and damage-free connections of copper and aluminium conductors across a wide cross-section range, ensuring high performance and safety in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LUG TINNED MECHANICAL SHEAR 400-630 SQMM
Brand: Cabac
SKU: KSSP-12-400630
Alternatively Known As: Tinned Mechanical Lug, Aluminium Mechanical Connector, Shear Bolt Lug, Cable Lug Connector
Technical Specifications
- Suitable for copper and aluminium conductors class 1, 2, and 5
- Cross-section range: 10 to 1000 mm²
- Bolt breaking place flush with connector body surface for repeatability
- Complies with IEC, EN 61238-1-3 standards
- Designed to reduce partial discharges and clamping force relaxation
- Supports connection of class 5 flexible conductors without screw fittings
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 0.3 kg
Key Features
- Bolt breaking place is repeatable flush with the outer surface of the connector body
- Compatible with copper and aluminium class 1, 2, and 5 connectors
- No damage to cable conductors during assembly
- Higher resistance to clamping force relaxation
- Reduction of partial discharges in connectors
- Significant reduction in the number of connector-pressing unit sets compared to traditional solutions
- Repeatability of cable connection system in terms of required clamping force
- Reduction of friction forces during installation, preventing cable conductor damage
- Capability to connect class 5 flexible conductors without screw fittings
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper torque and secure connections.
Applications
- Electrical power connectivity for copper and aluminium conductors
- Suitable for class 1, 2, and 5 conductors in industrial and commercial electrical installations
- Used in mechanical connections for cables ranging from 10 to 1000 mm² cross-section
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces waste by enabling reusable and reliable cable connections
- Prevents damage to conductors, extending cable life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects in materials and workmanship.
Available Now
The Cabac LUG TINNED MECHANICAL SHEAR 400-630 SQMM is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable mechanical lugs.
