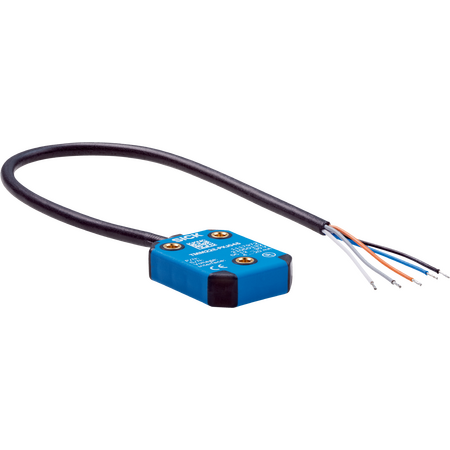

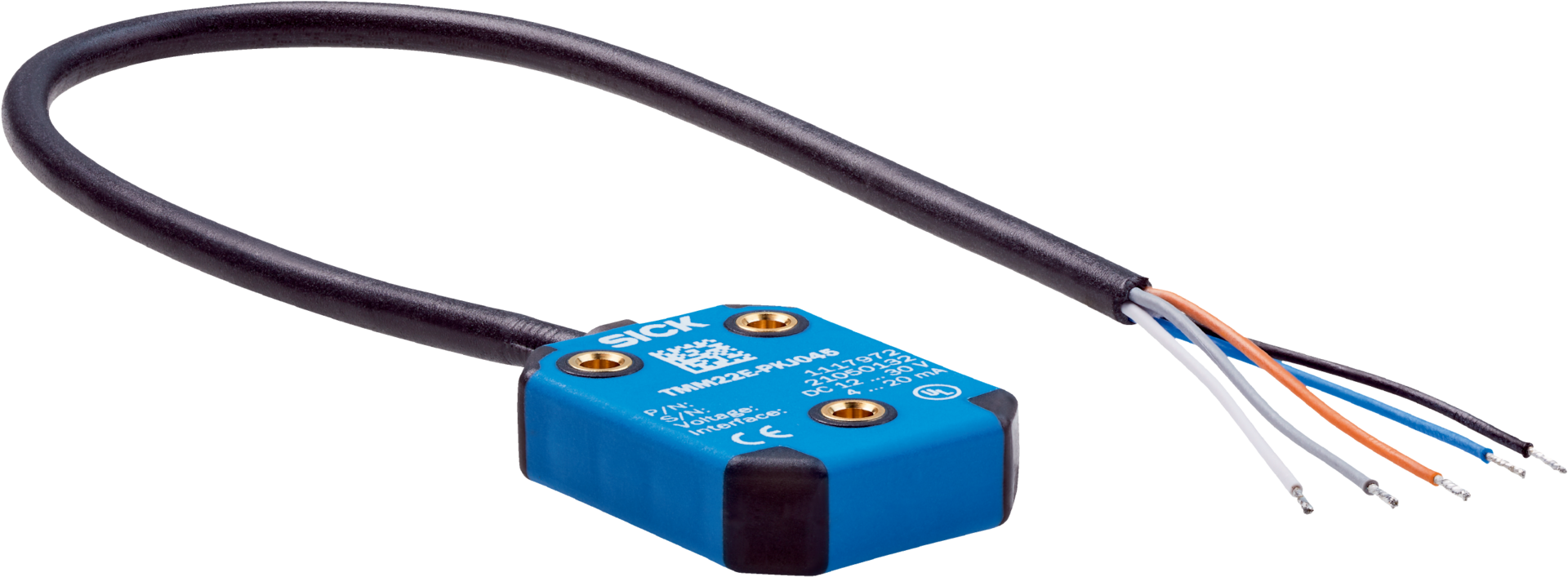

Product Name/Title: TMM22B-PKJ090 | Inertial sensors
Brand: SICK
SKU: 1141565
Alternatively Known As: Inertial angle sensor, 2-axis inclinometer, Industrial tilt sensor, Analog output inertial sensor
Technical Specifications
- Number of axis: 2
- Measuring range: ±90°
- Resolution: ≤ 0.01°
- Static measurement accuracy: Typical 0.1°, max 0.2°
- Repeatability: Typical 0.04°, max 0.12°
- Compensated cross-sensitivity (2D): ±0.3°
- Temperature coefficient (zero point): Typical ±0.0167°/K
- Limit frequency: 0.1 Hz to 10 Hz (default 2 Hz)
- Sampling rate: 400 Hz
- Communication interface: Analog current output 4 mA to 20 mA
- Load resistance: 200 Ω to 900 Ω
- Status LEDs: 2x (green/red)
- Output signal error state: 1 to 2.5 mA
- Parameterising data: Measuring range, zero set, limit frequency, preset value, inverting counting direction, axis assignment
- Programmable via PGT-15
- Connection type: 5-wire cable, 0.5 m length
- Supply voltage: 8 V DC to 32 V DC
- Current consumption: < 45 mA at 24 V
- Reverse polarity and short-circuit protection included
- Housing material: Glass-fiber reinforced plastic (PA12)
- Cable material: PUR
- EMC compliance: EN 61326-1
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -40 °C to +80 °C
- Storage temperature: -40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 10.4mm x 30mm x 38.8mm
- Weight: 0.1 kg
Key Features
- 2-axis inertial sensor with ±90° measuring range
- High resolution of ≤ 0.01° and typical static accuracy of 0.1°
- Robust housing with IP66, IP67, IP68, and IP69K protection ratings
- Analog current output (4 mA to 20 mA) with error state signaling
- Short-circuit and reverse polarity protection
- Operating temperature range from -40 °C to +80 °C
- Fast initialization time of 100 ms
- Status indication via dual green/red LEDs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation and machinery monitoring
- Robotics and motion control systems
- Safety-related angle measurement applications
- Condition monitoring in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption supports energy-efficient system integration
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TMM22B-PKJ090 inertial sensor is available for immediate purchase, ideal for industrial automation, safety, and monitoring applications.
