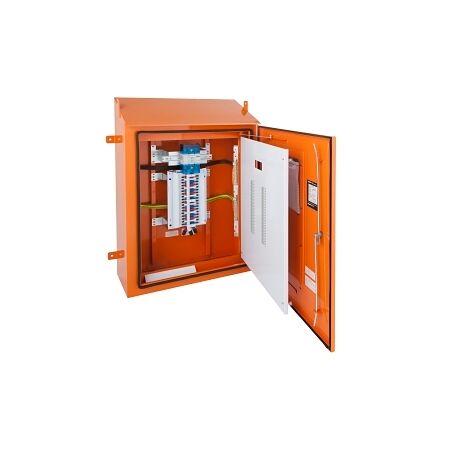

Tough Panelboard 84 Way | 250A Main Switch | IP66 Stainless Steel | Orange by NHP

BRAND: NHP
SKU: CTD84M250SSO
$28,173.50 List price: $37,410.80
Free pick up (over 25 kg)
For delivery quote message
Tough panelboard with 84 outgoing ways and 250A main switch—ideal for industrial and commercial electrical distribution. Built for durability with IP66-rated stainless steel housing, ensuring protection against dust and water ingress.

Product Name/Title: NHP Concept Tough Panelboard Size 3 1500mm IP66 DINT 84 Way 250A Main Switch Stainless Steel Orange

Brand: NHP

SKU: CTD84M250SSO

Alternatively Known As: Tough Panelboard, Industrial Panelboard, Electrical Distribution Board

Technical Specifications
  • Rated Current: 250 A
  • Number of Outgoing Ways: 84
  • Max Rated Operation Voltage: 415 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Rated Insulation Voltage: 500 V
  • Number of Poles: 3
  • Neutral Terminal Block: Yes
  • Earthing Terminal Block: Yes
  • Material Housing: Stainless Steel
  • Material Thickness: 2 mm
  • Degree of Protection: IP66
  • Impact Strength: IK10
  • Mounting Method: Surface mounted (plaster)
  • Dimensions (H x L x W): 1500mm x 324mm x 800mm
  • Weight: 50 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Stainless steel housing for durability and corrosion resistance.
  • 84 outgoing ways for extensive electrical distribution.
Professional Installation Requirements
  • Professional installation by a qualified electrician is required for safety and compliance.
Applications
  • Industrial: Factories, manufacturing plants
  • Commercial: Retail spaces, office buildings
  • General: Any location requiring robust electrical distribution
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Tough Panelboard Size 3 1500mm IP66 DINT 84 Way 250A Main Switch Stainless Steel Orange is available now for immediate purchase. Ideal for industrial and commercial electrical distribution.

Non-Returnable & Non-Cancellable

CTD84M250SSO-AU-Concept-Tough-Panelboard-Datasheet.pdf (CTD84M250SSO-AU-Concept-Tough-Panelboard-Datasheet.pdf, 248 Kb) [Download]
