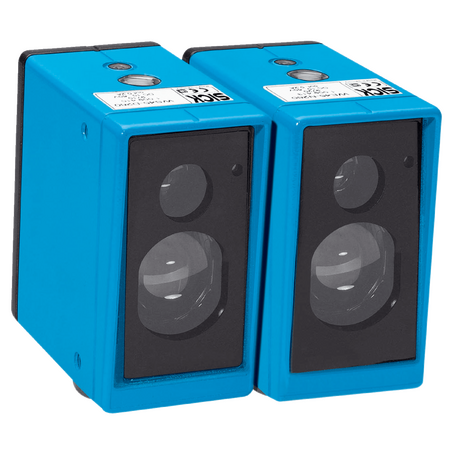

Transmitted Beam Photoelectric Switch WS45-D260S01 Sender DC 10...60 V
The SICK WS45-D260S01 Transmitted Beam Photoelectric Switch is a robust through-beam sensor designed for industrial applications, capable of detecting objects up to 35 meters away, including hot objects over 800 °C, with high switching speed and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Transmitted Beam Photoelectric Switch WS45-D260S01 Sender DC 10...60 V
Brand: SICK
SKU: 2018949
Alternatively Known As: Photoelectric Sensor WS45-D260S01, Through-beam Sensor WS45, SICK Beam Sensor Sender, Industrial Photoelectric Switch
Technical Specifications
- Supply voltage: DC 10 V to 60 V
- Power consumption: 50 mA (sender and receiver)
- Switching output: PNP complementary
- Output current max: ≤ 200 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Time delay adjustable from 0.015 s to 12 s
- Connection type: Terminal connection with PG13.5, 6-pin
- Protection class: Class I
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 263 years
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 1.6 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 35 meters with a light spot size of Ø 560 mm at 35 m
- Adjustable potentiometer for sensitivity and delay time settings
- Light/dark switching mode with complementary PNP output
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Robust metal housing with IP67 enclosure rating for protection against dust and water
- Special feature for detecting hot objects with surface temperatures > 800 °C
- Terminal connection with PG13.5, 6-pin for secure wiring
- Includes time functions with adjustable switch-on and off delay
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards to ensure proper setup and compliance with electrical regulations.
Applications
- Industrial automation for object detection
- Detection of hot objects with surface temperatures above 800 °C
- Use in harsh environments requiring IP67 protection
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 50 mA current draw
- Durable metal housing extends product life reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS45-D260S01 Transmitted Beam Photoelectric Switch is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable object detection over long distances.
