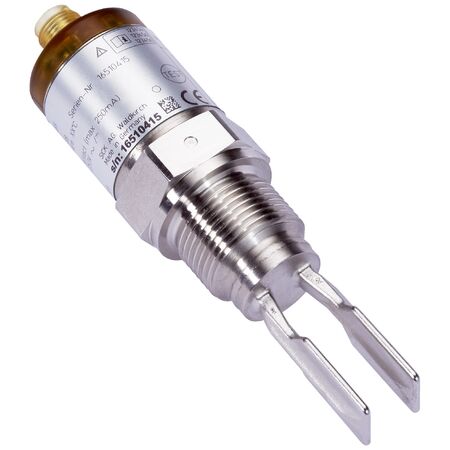

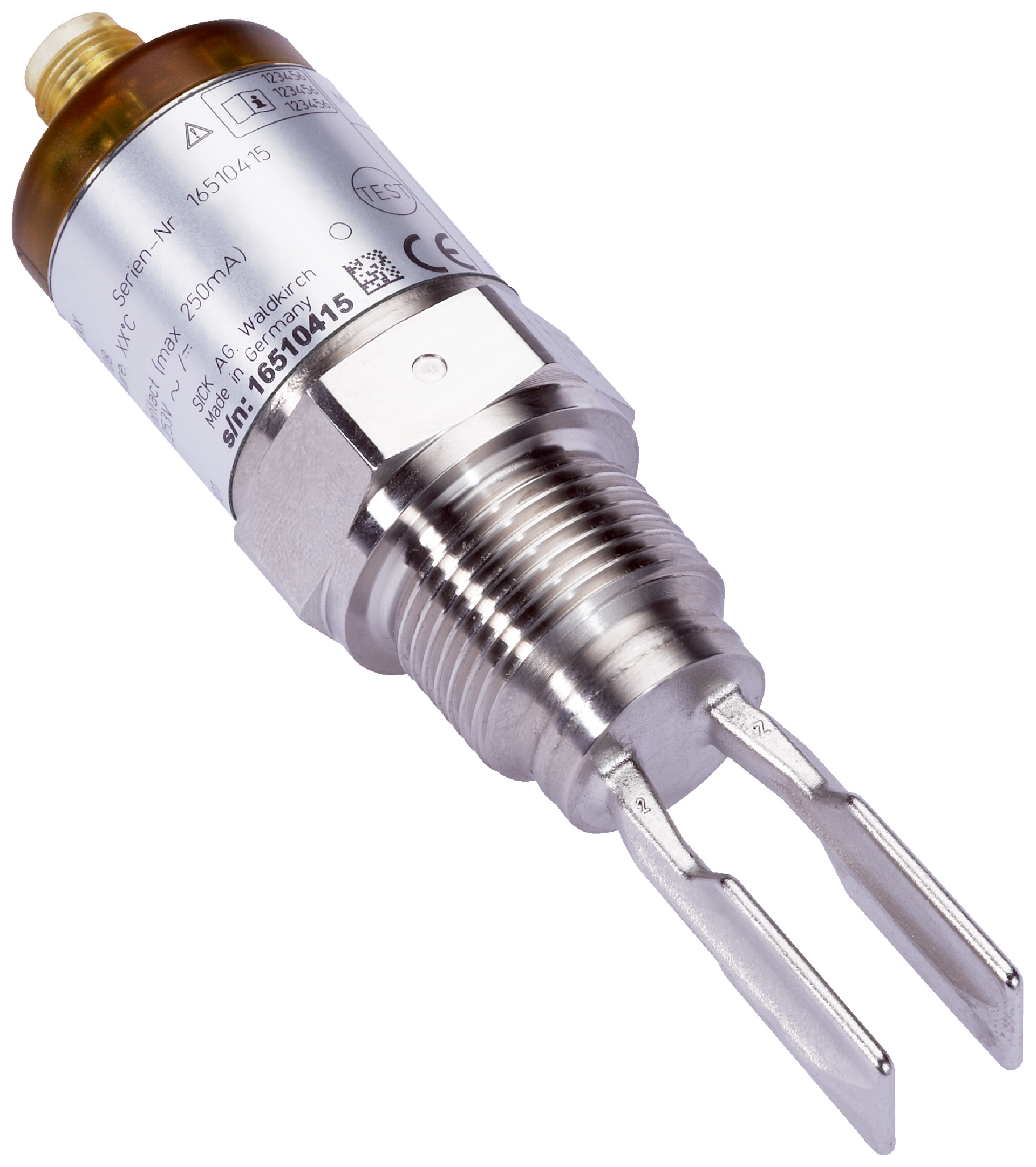

Tuning Fork Level Sensor | Non-Contact Switch | IP65 Rated | by SICK
The Tuning Fork Level Sensor is designed for reliable fluid level detection in industrial processes, featuring a non-contact switch output and a robust stainless steel construction. With a wide process temperature range from -40 °C to +150 °C and an accuracy of ±2 mm, it's perfect for monitoring liquids in tanks and pipelines across food, chemical, and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tuning Fork Level Sensor | Non-Contact Switch | IP65 Rated | by SICK
Brand: SICK
SKU: 6042248
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, LFV200 Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe type: Tuning fork
- Probe length: 115 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤10 mA
- Initialization time: <3 s
- Connection type: Valve plug DIN 43650
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G ¾ A PN 64
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 115mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable level detection
- Suitable for fluids with density from 0.7 g/cm³ to 2.5 g/cm³
- Process pressure range from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +150 °C
- Non-contact switch output signal
- High accuracy with ±2 mm sensor element accuracy
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP65 rated enclosure for protection against dust and water
- VDE protection class 1 certified
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Fluid level detection in industrial processes
- Measurement and monitoring of liquids in tanks and pipelines
- Suitable for use in food, chemical, and pharmaceutical industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact switching reduces wear and extends sensor life, minimizing waste
- Durable stainless steel construction supports long-term use and recyclability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LFV200-XXTGBCPVL tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
