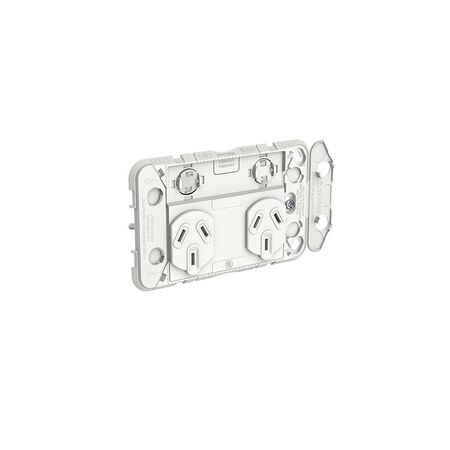

Twin Switch Socket Outlet Grid | 250V 10A | Horizontal Mount
Twin switch socket outlet grid with 250V 10A capacity and horizontal mount—ideal for modern electrical installations. Built for versatility, with a sleek design that blends seamlessly into any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Twin Switch Socket Outlet Grid | 250V 10A | Horizontal Mount
SKU: 3025G
Alternatively Known As: Twin Switch Socket Outlet, Twin Power Point, Double Switch Socket, Horizontal Socket Grid, Clipsal Twin Switch Outlet
Technical Specifications
- Rated current: 10 A, 250 V AC, 50 Hz
- Material: Polycarbonate (PC) for grid plate
- Device mounting: Flush
- Outlet poles configuration: 1P + E with shutter
- Electrical durability: 12,000 cycles
- Connections - terminals: 3 x screw terminals
- Clamping connection capacity: 2.5 square mm (rigid)
- Wire stripping length: 16 mm
- Embedding depth: 18 mm
- Ambient air temperature for operation: 0 to 45°C
- Relative humidity: 10 to 95%
- Dimensions (H x L x W): 115mm x 26mm x 71mm
- Weight: 0.094 kg
Key Features
- Modern slim, sleek, and clean design
- Flush device mounting for a neat finish
- Grid plate type with 1P + E outlet poles configuration with shutter
- Rated current of 10A at 250V AC, 50Hz
- Electrical durability of 12,000 cycles
- 3 x screw terminals with Philips No 2 (PH2) screw head
- Supports up to 4 cables with 2.5 square mm clamping connection capacity
- Polycarbonate (PC) material for grid plate
- Horizontal fixing mode by screws
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Residential: Homes and apartments
- Commercial: Offices, retail spaces, hospitality venues
- General: Indoor electrical outlet applications requiring twin switch socket
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable polycarbonate construction reduces need for frequent replacements
- Designed for energy-efficient electrical connections
- Supports compliance with Australian electrical safety standards ensuring safe energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal Iconic warranty terms for details.
Available Now
The Clipsal Iconic Twin Switch Socket Outlet Grid is available for immediate purchase. Ideal for residential and commercial indoor electrical outlet applications requiring a modern and durable twin switch socket.
