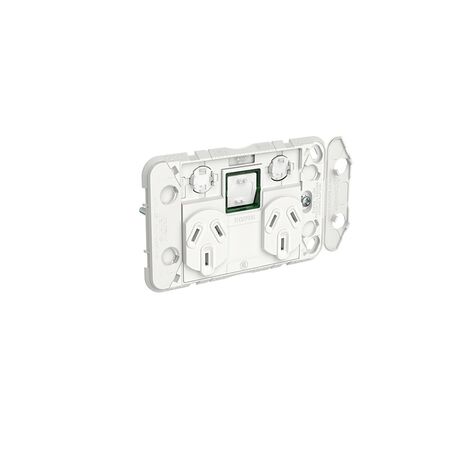

Twin Switch Socket Outlet Grid | 250V 10A | Horizontal Mount
Twin switch socket outlet grid with 250V 10A capacity and horizontal mount—ideal for modern electrical setups. Built for versatility, with a removable extra switch and sleek design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Twin Switch Socket Outlet Grid | 250V 10A | Horizontal Mount
SKU: 3025XAG
Alternatively Known As: Twin Switch Power Outlet, Double Switch Socket, Horizontal Switch Socket Grid, Clipsal Twin Switch Outlet
Technical Specifications
- Rated Voltage: 250 V AC, 50 Hz
- Rated Current: Socket 10 A, Switch 10 AX
- Material: Grid plate - Polycarbonate (PC), Flaps - Polypropylene (PP), Shutter - Polyoxymethylene (POM), Switch - Polycarbonate (PC) and PA66, Locking bar - Polyoxymethylene (POM)
- Switch Function: 2-way
- Outlet Poles Configuration: 1P + E with earthing contact
- Mounting Mode: Flush, Horizontal
- Connection Terminals: Screw terminal
- Wire Stripping Length: 16 mm
- Electrical Durability: 12,000 cycles
- Ambient Operating Temperature: 0 to 45°C
- Ambient Storage Temperature: 0 to 60°C
- Ambient Humidity for Operation: 10% to 95%
- Number of Terminals: 3
- Socket Number: 2
- Fixing Mode: By screw
- Surface Finish: Matt
- Colour: White
- Standards: AS/NZS 3112, AS/NZS 60669.1, AS/NZS 3133
- Product Certification: RCM
- Dimensions (H x L x W): 115mm x 31mm x 71mm
- Weight: 0.071 kg
Key Features
- Twin switch socket outlet grid with removable extra switch
- Horizontal mount design
- Flush device mounting
- Matt white finish
- With shutter for safety
- 2-way switch function
- Screw terminal connections with Philips No 2 and Square drive No 1 screw heads
- Electrical durability of 12,000 cycles
- Supports cables up to 4 x 2.5 mm² stranded, flexible, or rigid
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Indoor electrical power outlet and switch applications
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 60669.1 – Switches for household and similar fixed electrical installations
- AS/NZS 3133 – General requirements for electrical accessories
Environmental Benefits
- Durable materials extend product life reducing waste
- Energy efficient design minimizes power loss
- Complies with safety standards reducing risk of electrical faults
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal Iconic warranty terms for details.
Available Now
The Clipsal Iconic Twin Switch Socket Outlet Grid is available for immediate purchase. Ideal for residential and commercial indoor electrical installations requiring a reliable and modern switch socket solution.
