Type 2 Surge Protector 40kA | Single Pole | Includes Sensor | -40 to +80°C by Cabac
The Cabac SURGE DEV V20 TYPE 2 1P 40kA with Sensor provides reliable Type 2 surge protection for electrical systems, ensuring safety and durability with a wide temperature range and advanced sensor technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

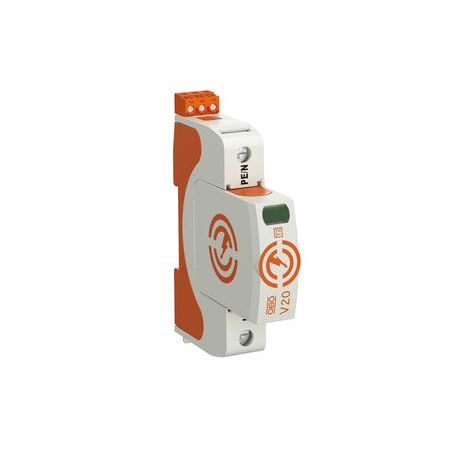

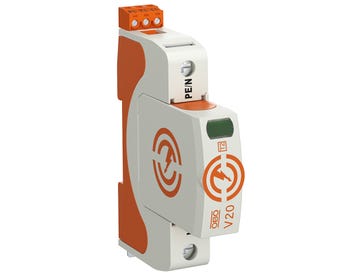

Product Name/Title: SURGE DEV V20 TYPE 2 1P 40kA + SENSOR
Brand: Cabac
SKU: V20-1-FS-280
Alternatively Known As: Type 2 Surge Protector, Single Pole Surge Device, 40kA Surge Protection Device
Technical Specifications
- Surge Protection Type: Type 2
- Surge Current Capacity: 40kA
- Protection Level: <1.3kV
- Operating Temperature: -40 to +80 degrees Celsius
- Poles: Single Pole (1P)
- Includes Sensor for monitoring
- Dimensions (H x L x W): 70mm x 60mm x 90mm
- Weight: 0.5 kg
Key Features
- Type 2 surge protection with 40kA capacity
- Operating temperature range from -40 to +80 degrees Celsius
- Protection level less than 1.3kV
- Includes sensor for enhanced monitoring
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal device performance.
Applications
- Electrical & Power Connectivity
- Surge Protection for residential and commercial electrical systems
- AC Power Protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical equipment from surge damage, reducing electronic waste
- Enhances longevity of electrical systems, minimizing replacement frequency
Warranty Information
5 Year Warranty
Available Now
The Cabac SURGE DEV V20 TYPE 2 1P 40kA with Sensor is available now for immediate purchase. Ideal for protecting residential and commercial electrical systems from power surges.
