U Shape Fittings | Hot Dipped Galvanised | 14mm Holes
U shape fittings with hot dipped galvanised finish and 14mm diameter holes—ideal for structural applications. Built for durability, with 40mm width and versatile design for multiple configurations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

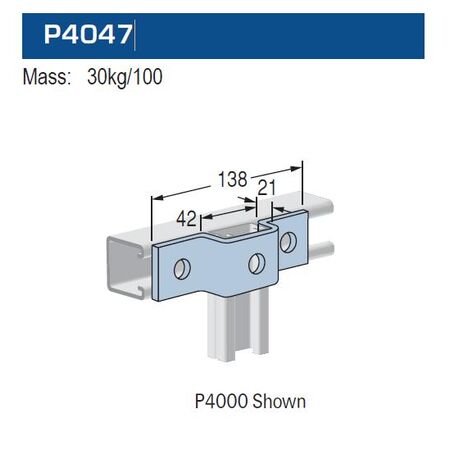

Product Name/Title: U Shape Fittings | Hot Dipped Galvanised | 14mm Holes
SKU: P4047H
Alternatively Known As: U Bracket, U Channel Fitting, Galvanised Steel U Fitting, Structural U Bracket
Technical Specifications
- Material: Punch press formed plate or strip steel
- Finish: Hot dipped galvanised to AS/NZS 4680
- Hole Diameter: 14mm
- Hole Spacing: 21mm from end, 48mm on centre
- Width: 40mm
- Thickness: 6mm
- Mass: 30 kg per 100 pieces
- Dimensions (H x L x W): n/a mm x n/a mm x 40mm
- Weight: 0.3 kg
Key Features
- Made from punch press formed plate or strip steel
- Hot dipped galvanised finish to AS/NZS 4680 for corrosion resistance
- 14mm diameter holes compatible with M12 x 24 hex head set screws and M12 nuts
- Design load data based on ultimate strength with safety factor of 2.5
- Hole spacing: 21mm from end, 48mm on centre
- Width: 40mm, Thickness: 6mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural steel fittings and appropriate fastening methods.
Applications
- Structural connections in construction and building frameworks
- Support and bracing in industrial and commercial installations
- General use in steel fabrication and assembly requiring strong fittings
Standards & Compliance
- Complies with AS/NZS 4680 for Hot Dipped Galvanised Coatings on Fabricated Ferrous Articles
Environmental Benefits
- Hot dipped galvanised finish extends product life and reduces need for frequent replacements
- Corrosion resistance minimizes environmental impact from rust and degradation
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
U Shape Fittings with hot dipped galvanised finish and 14mm holes are available now for immediate purchase. Ideal for construction, industrial, and structural applications.
