U Shape Fittings | Hot Dipped Galvanized | 14mm Hole
U shape fittings with hot dipped galvanized finish and 14mm diameter holes—ideal for structural applications. Built for durability, with 40mm width and robust design for secure connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

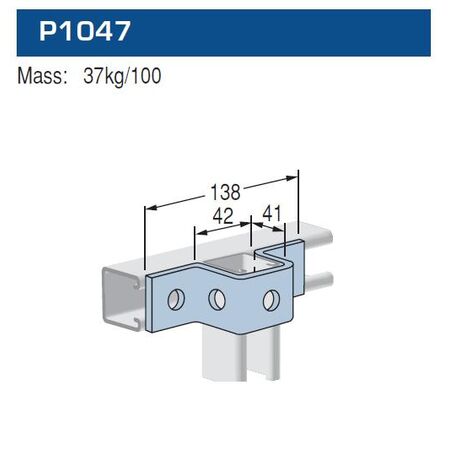

Product Name/Title: U Shape Fittings | Hot Dipped Galvanized | 14mm Hole
SKU: P1047DG
Alternatively Known As: U Channel Fittings, Galvanized U Brackets, Structural U Shaped Connectors, Hot Dip Galvanized U Fittings
Technical Specifications
- Material: Punch press formed plate or strip steel
- Hole Diameter: 14mm
- Hole Spacing: 21mm from end, 48mm on centre
- Width: 40mm
- Thickness: 6mm
- Finish: Hot dipped galvanized to AS/NZS 4680
- Mass: 37 kg per 100 pieces
- Compatible with M12 x 24 hex head set screws and M12 nuts (not included)
- Dimensions (H x L x W): n/a mm x n/a mm x 40mm
- Weight: 0.37 kg
Key Features
- Made from punch press formed plate or strip steel
- Hot dipped galvanized finish to AS/NZS 4680 for corrosion resistance
- 14mm diameter holes designed for M12 x 24 hex head set screws and M12 nuts
- Hole spacing: 21mm from end and 48mm on centre
- Width: 40mm, Thickness: 6mm
- Design load data based on ultimate strength with safety factor of 2.5
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural fittings and appropriate fastening methods to ensure safety and compliance.
Applications
- Structural connections in construction and building frameworks
- Use with P1000 41mm square members and compatible channels
- Suitable for various fitting applications including flat plate, 90 degree, angular, Z, U, and wing shape fittings
Standards & Compliance
- Complies with AS/NZS 4680 – Hot Dip Galvanized Coatings on Fabricated Ferrous Articles
Environmental Benefits
- Hot dipped galvanizing provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste
- Steel is recyclable, supporting sustainable construction practices
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The U Shape Fittings with hot dipped galvanized finish and 14mm holes are available now for immediate purchase. Ideal for structural and construction applications requiring durable and corrosion-resistant fittings.
