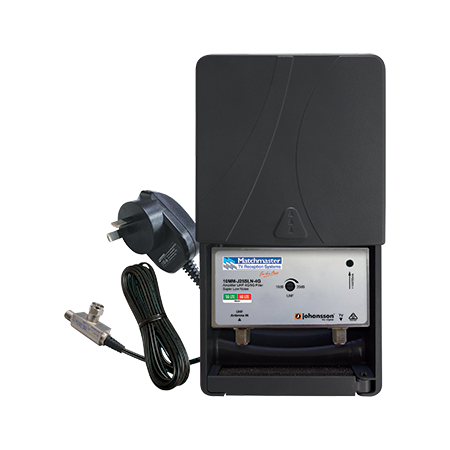

Masthead Amplifier 25dB UHF Low Noise 4G 5G Grey Matchmaster
Matchmaster Masthead Amplifier UHF Low Noise Grey features 520-694MHz and 10-25dB. Non-corrosive circuit board with components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Band: UHF
- Frequency Range: 520-694MHz
- Gain: 10-25dB
- Noise Figure: 1.5dB
- Maximum Input Level: 85dBµV
- Maximum Output Level: 105dBµV
- Consumption: 55mA at 14VDC
- Connectors: 'F' Type
- Dimensions (H x L x W): 40mm x 80mm x 120mm
- Weight: 0.3 kg
Key Features
- 25dB gain super low noise amplifier with 15dB gain adjustment in a fully screened housing to maximise signal quality
- Built-in 4G/5G LTE 694MHz low pass filter to eliminate unwanted frequencies
- Non-corrosive circuit board with high-quality components
- U/V stabilised weatherproof housing and cable tie
- Wide range DC voltage operation, 5-24V DC
- Included 14V DC power supply
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with electrical standards.
Applications
- Residential: Enhance TV signal reception for homes
- Commercial: Improve signal quality in offices and commercial buildings
- Broadcasting: Suitable for UHF signal amplification in broadcast setups
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves signal quality reducing the need for multiple devices and lowering energy consumption
- Weatherproof design extends product lifespan reducing electronic waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Matchmaster Masthead Amplifier UHF Super Low Noise 25dB with 4G/5G Filter and Power Supply is available now for immediate purchase. Ideal for residential and commercial TV signal enhancement applications.
