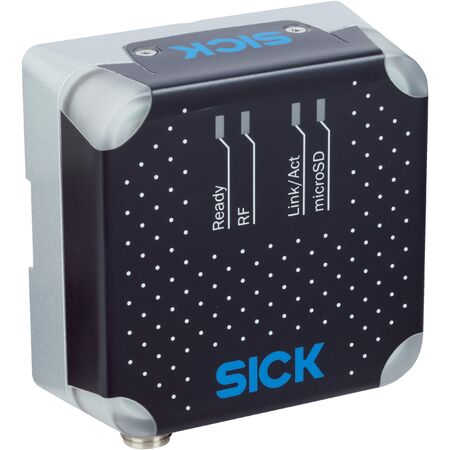

UHF RFID Reader RFU610-10613 | Integrated Antenna | IP67 Rated | by SICK
The UHF RFID Reader RFU610-10613 is a short-range read/write device with an integrated antenna, designed for industrial automation and logistics applications. Operating in the UHF frequency band of 860 MHz to 960 MHz, it supports multiple connection types and features robust IP67-rated housing for durability. Ideal for asset tracking and access control, this device ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range UHF RFID read/write device with integrated antenna
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 922.25 MHz to 927.75 MHz
- Output power: 40 mW (EIRP, 16 dBm)
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Adjustable transmitting power with circular polarization antenna
- Aperture angle of 110°
- Read range up to 0.5 meters
- Multiple connection types including PoE, Power and Ethernet
- Robust aluminum die cast and PPS plastic housing with IP67 rating
- Supports Ethernet, PROFINET, EtherNet/IP™, USB interfaces
- Equipped with 4 multi-color LEDs for device status and process feedback
- Web server operator interface and SOPAS ET configuration software
- MicroSD memory card slot for parameter cloning and data storage
- Operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and compliance with local regulations.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Access control and security systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 6 W (3 W standby) reduces energy usage
- Durable IP67 rated housing ensures long product life and reduces waste
- Supports efficient asset tracking to optimize resource use and reduce losses
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK RFU610-10613 RFID read/write device is available for immediate purchase. Ideal for industrial automation, logistics, and manufacturing applications.
