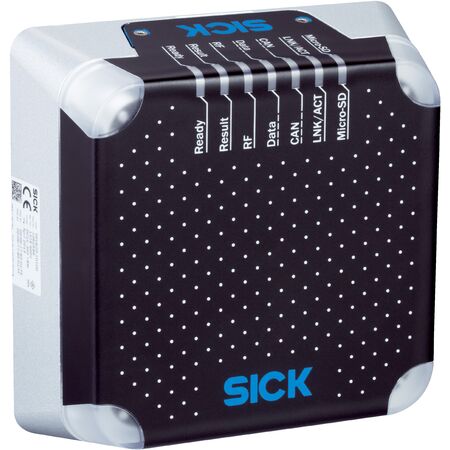

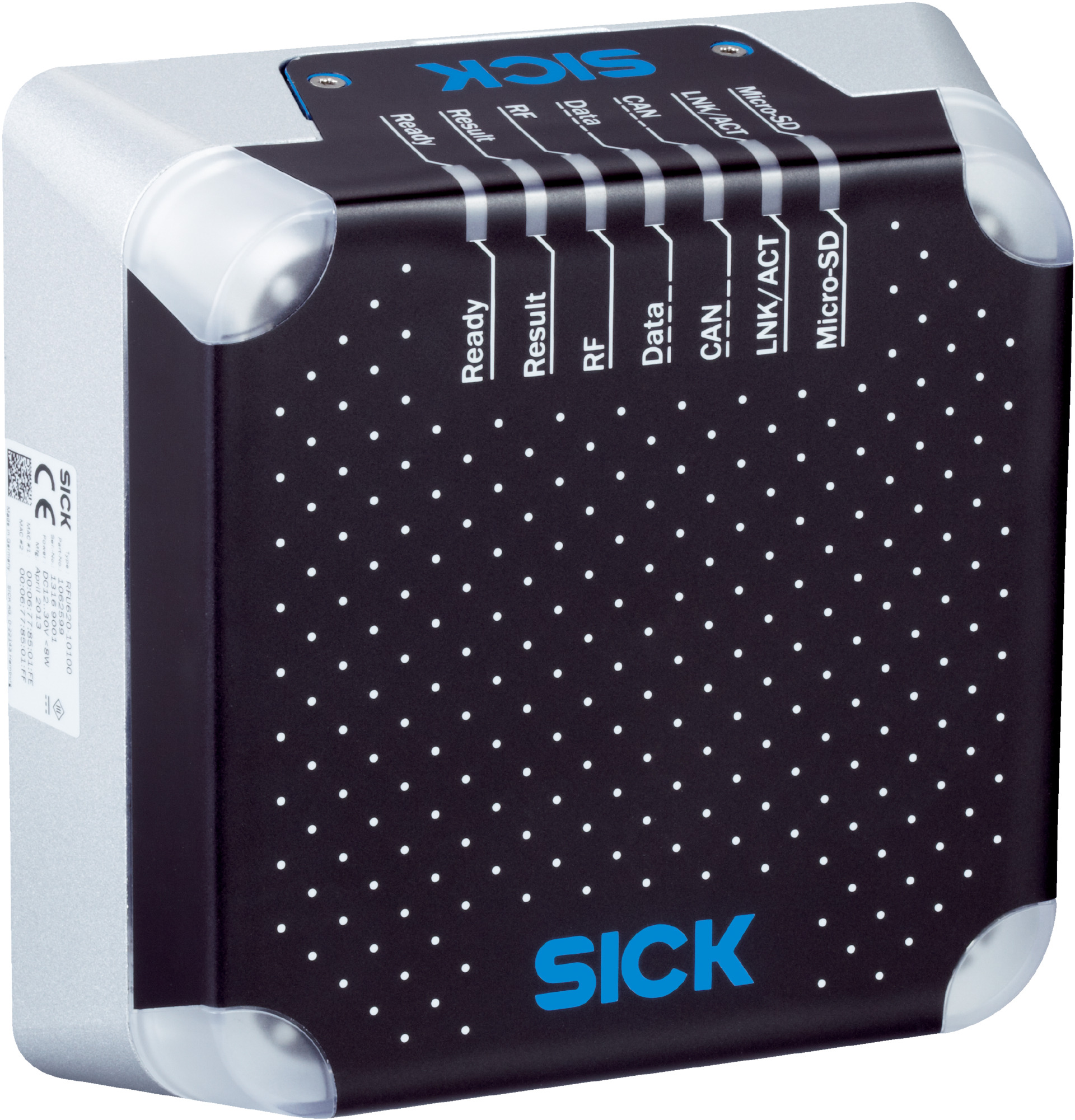

UHF RFID Reader RFU620-10104 | Integrated Antenna | IP67 Rated | by SICK
The UHF RFID Reader RFU620-10104 is designed for industrial automation, featuring an integrated antenna and a frequency range of 860 MHz to 960 MHz. With an IP67 rating and adjustable transmitting power, it’s perfect for asset tracking and logistics in harsh environments, ensuring reliable performance even in extreme temperatures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 902 MHz to 907.5 MHz and 915 MHz to 928 MHz
- Output power: 0.32 W (EIRP, 25 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection type: Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, USB
- Antenna: Integrated, circular polarization, axial ratio typ. 3 dB, front-to-back ratio > 5 dB
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 8 W, with heating typical 16 W
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- MTBF: > 100 years
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 902 MHz to 928 MHz
- Adjustable transmitting power with circular polarization antenna
- Read range up to 2 meters
- Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP, CANopen, EtherCAT®, and USB interfaces
- IP67 rated aluminum die cast and PPS plastic housing
- Heating function for operation in cold environments
- Multi-color LEDs for device status and process feedback
- Updatable firmware and freely programmable data output format
- Supports SICK AppSpace functionalities with SD card accessory
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration with existing systems and compliance with electrical standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation to optimize resource use and reduce energy consumption
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU620-10104 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
