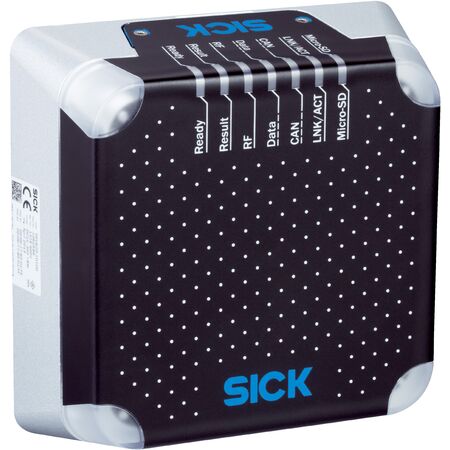

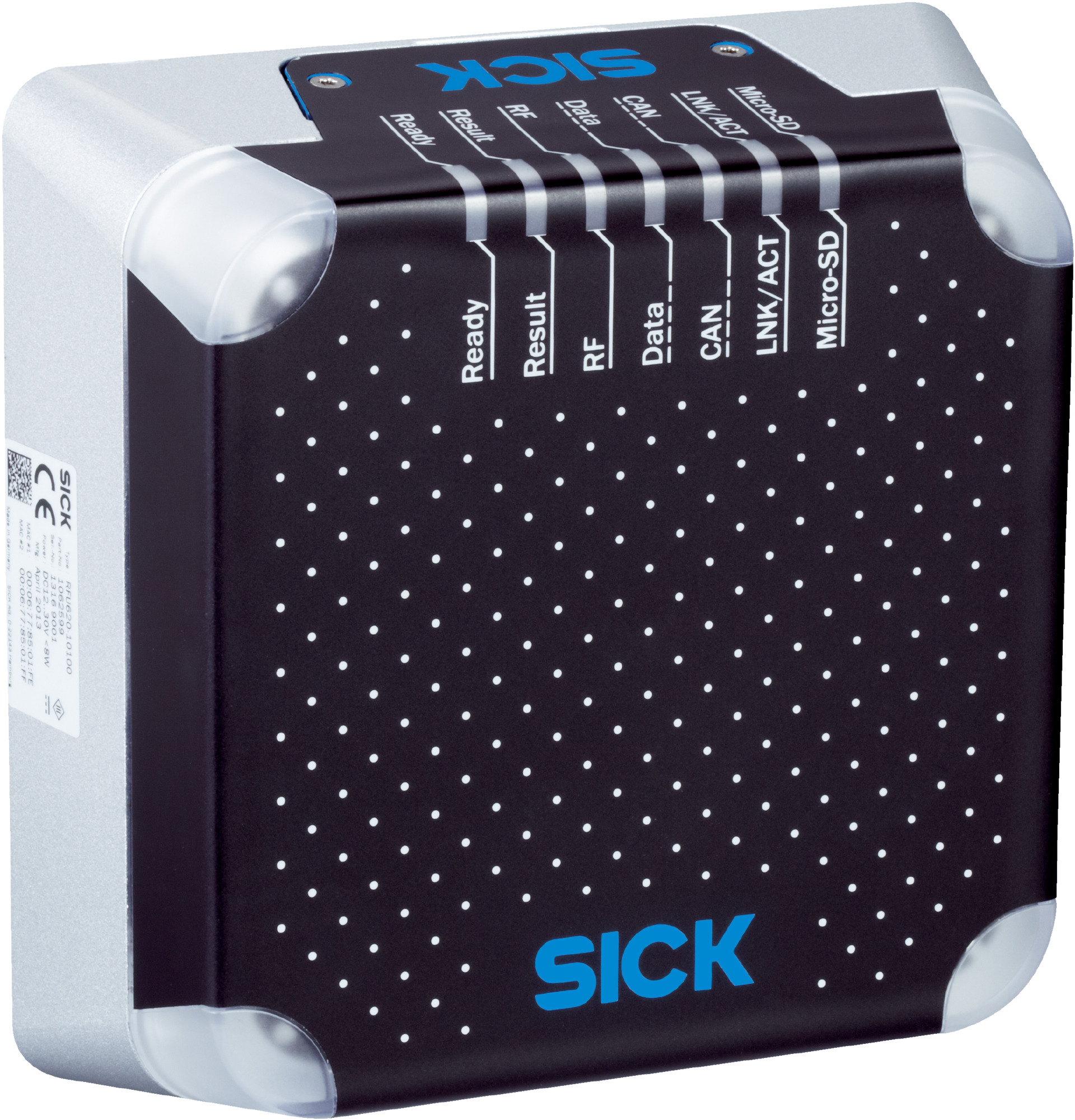

UHF RFID Reader RFU620-10113 | Integrated Antenna | IP67 Rated | by SICK
The UHF RFID Reader RFU620-10113 is a robust read/write device designed for industrial automation, featuring an integrated antenna and a frequency range of 860 MHz to 960 MHz. With an impressive read range of up to 2 meters and multiple interface support including Ethernet and PROFINET, it's perfect for asset tracking and logistics management. Built to withstand harsh environments with an IP67 rating, this device ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 922.25 MHz to 927.75 MHz
- Output power: 0.2 W (ERP, 23 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection type: Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, USB
- Antenna: Integrated, circular polarization, axial ratio typ. 3 dB, front-to-back ratio > 5 dB
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 8 W, with heating typical 16 W
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- Weight: 780 g
- MTBF: > 100 years
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Interfaces support data transmission rates up to 10/100 MBit/s
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 922.25 MHz to 927.75 MHz
- Adjustable transmitting power with circular polarization antenna
- Read range up to 2 meters
- Integrated diagnosis, updatable firmware, and programmable data output format
- Multiple interface support including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP, CANopen, EtherCAT®, and USB
- IP67 rated aluminum die cast and PPS plastic housing for robust protection
- Operating temperature range from -40 °C to +50 °C
- Supports SICK AppSpace functionalities with SD card accessory
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports long device lifetime with durable housing reducing replacement frequency
- Low power consumption with typical 8 W operation and heating option
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK RFU620-10113 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
