UHF Transponder, Rectangular, On-Metal, FCC | RFID transponders

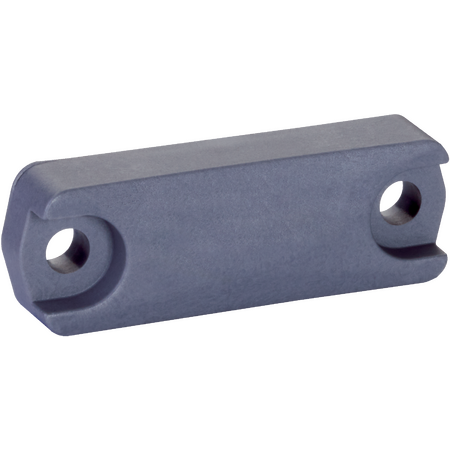

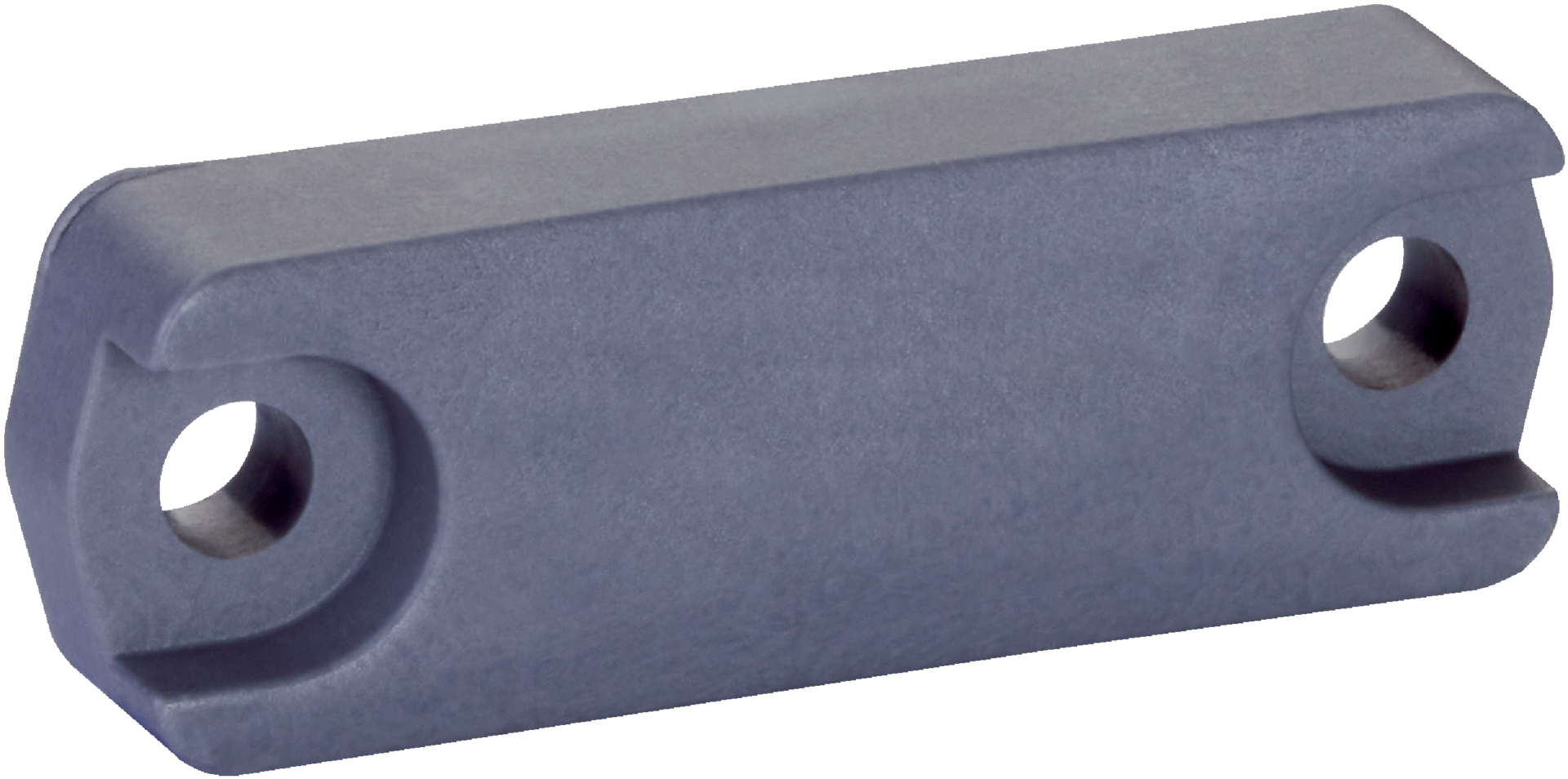

The SICK UHF Transponder is a rectangular RFID tag designed for on-metal applications, capable of withstanding high temperatures and harsh environments, ideal for industrial asset tracking.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UHF Transponder, Rectangular, On-Metal, FCC | RFID transponders
Brand: SICK
SKU: 6086975
Alternatively Known As: UHF RFID Tag, On-Metal RFID Transponder, High Temperature RFID Tag, Rectangular RFID Transponder
Technical Specifications
- Frequency Band: UHF 860 MHz to 960 MHz
- Carrier Frequency: 902 MHz to 928 MHz
- Housing Material: Polymer
- Operating Temperature: -40 °C to +85 °C
- Application Temperature: +150 °C for 4 hours
- Storage Temperature: -30 °C to +85 °C
- Storage Capacity: 96/32 bits (EPC/User Memory)
- IC Type: Impinj M750
- Data Retention Time: < 20 years
- Mounting Method: Screws
- Reading Range: 20 cm to 300 cm depending on model
- Dimensions (H x L x W): 6mm x 32mm x 11mm
- Weight: 0.1 kg
Key Features
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 902 MHz to 928 MHz
- Rectangular polymer housing designed for on-metal use
- High temperature resistance up to +150 °C for 4 hours
- Storage capacity of 96/32 bits (EPC/User Memory)
- IC type: Impinj M750 with data retention time of less than 20 years
- Mounting method via screws for secure attachment
- Reading ranges: 20 cm (RFU61x), 40 cm (RFU62x), 300 cm (RFU63x/RFU65x)
Professional Installation Requirements
- Professional installation recommended to ensure proper mounting and optimal RFID performance.
Applications
- Marking of metal parts exposed to high temperatures, liquids, and chemicals
- Industrial environments requiring durable RFID tagging
- Asset tracking in harsh conditions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables efficient asset tracking reducing loss and waste
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UHF Transponder Rectangular On-Metal RFID Transponder FCC is available for immediate purchase, ideal for industrial and high-temperature metal asset tracking applications.
