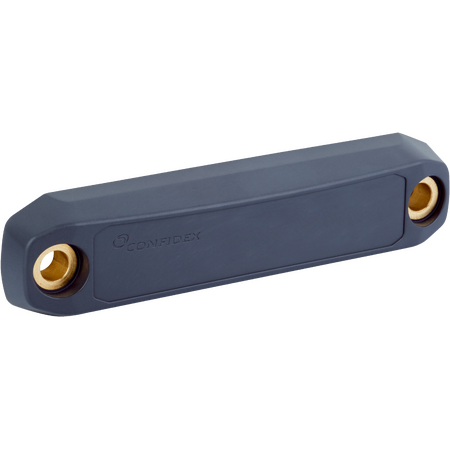

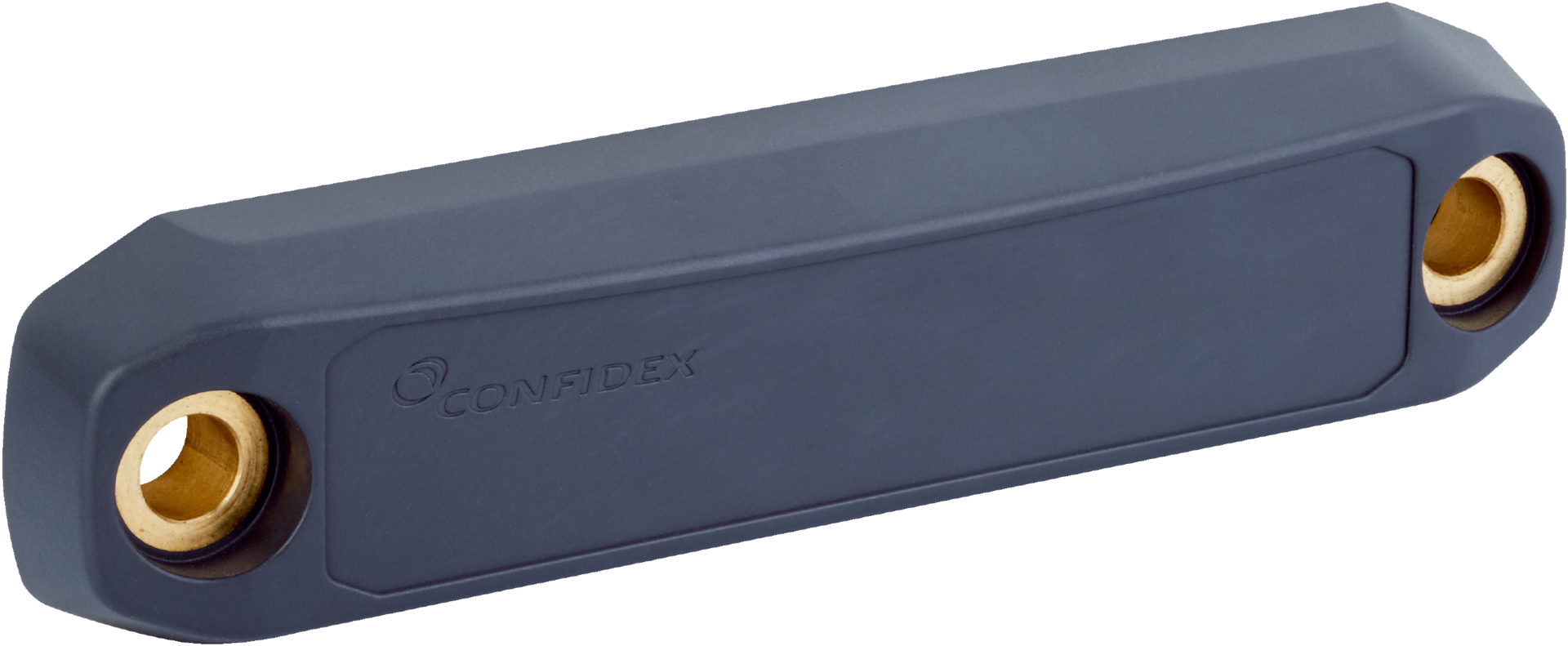

UHF Transponder Rectangular On-Metal global RFID transponders

BRAND: SICK
SKU: 6086968
$24.60 List price: $30.90
+ −
30 Days Return Electricians Unlock Trade Access
The SICK UHF Transponder is a rectangular RFID tag designed for reliable marking of metal parts exposed to harsh environments including liquids and chemicals

Product Name/Title: UHF Transponder, Rectangular, On-Metal, global | RFID transponders

Brand: SICK

SKU: 6086968

Alternatively Known As: UHF RFID Tag, On-Metal RFID Transponder, Rectangular RFID Tag, Industrial RFID Transponder

Technical Specifications
  • Frequency band: UHF 860 MHz to 960 MHz
  • Carrier frequency: 865 MHz to 928 MHz
  • Housing material: Plastic
  • Operating temperature: -35 °C to +85 °C
  • Storage temperature: -35 °C to +85 °C
  • IC type: Impinj M780
  • Memory: 496 Bit EPC, 128 Bit User Memory
  • Data retention: Less than 20 years
  • Mounting method: Screws, Rivets
  • Reading ranges: RFU61x 60 cm, RFU62x 130 cm, RFU63x/RFU65x 600 cm
  • Dimensions (H x L x W): 10mm x 21mm x 85mm
  • Weight: 0.1 kg
Key Features
  • UHF frequency band (860 MHz to 960 MHz) for long-range reading
  • Rectangular plastic housing designed for on-metal applications
  • Operating temperature range from -35 °C to +85 °C
  • Impinj M780 IC with 496/128 Bit EPC/User memory
  • Durable housing suitable for exposure to liquids and chemicals
  • Mounting via screws or rivets for secure attachment
Professional Installation Requirements
  • Installation by trained personnel recommended to ensure proper mounting and optimal RFID performance.
Applications
  • Marking of metal parts exposed to liquids and chemicals
  • Industrial asset tracking and identification
  • Metal surface RFID tagging in harsh environments
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Enables efficient asset tracking reducing loss and waste
  • Durable design reduces need for frequent replacements
  • Supports sustainable industrial operations through reliable identification
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK UHF Transponder Rectangular On-Metal RFID Transponder is available for immediate purchase, ideal for industrial and harsh environment RFID tagging applications.
