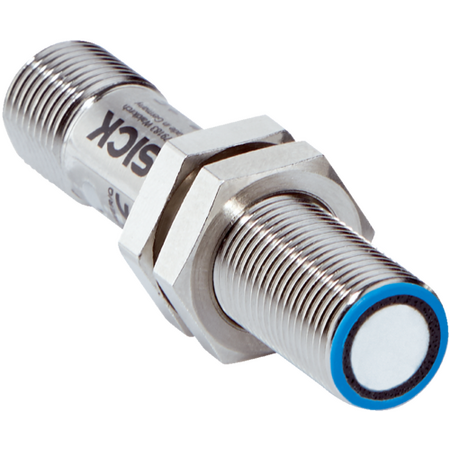

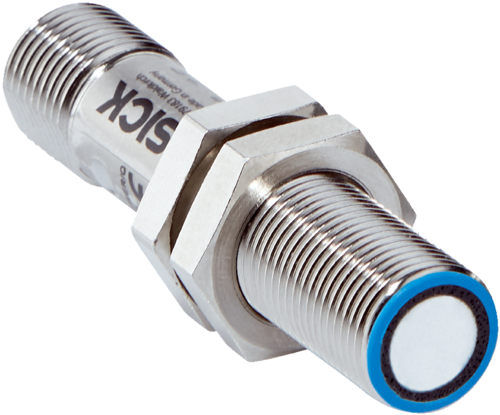

Ultrasonic Distance Sensor 20 mm to 150 mm Range 0.069 mm Resolution SICK

BRAND: SICK
SKU: 6053544
$913.40 List price: $1,148.00
+ −
30 Days Return Electricians Unlock Trade Access
The Ultrasonic Distance Sensor offers an operating range from 20 mm to 150 mm, extendable to 250 mm, with a high resolution of ≥ 0.069 mm.
Technical Specifications
  • Operating range: 20 mm to 150 mm, extendable to 250 mm
  • Target: Natural objects
  • Resolution: ≥ 0.069 mm
  • Repeatability: ± 0.15 %
  • Measurement accuracy: ± 1 %
  • Temperature compensation: Yes
  • Response time: 24 ms
  • Output time: 8 ms
  • Ultrasonic frequency: 380 kHz
  • Analog output: 4 mA to 20 mA current output, 12-bit resolution
  • Supply voltage: DC 10 V to 30 V
  • Power consumption: ≤ 0.9 W
  • Initialization time: < 300 ms
  • Indication: 2 x LED
  • Enclosure rating: IP65 / IP67
  • Protection class: III
  • Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
  • Connection type: Male connector, M12, 4-pin
  • Thread size: M12 x 1
  • Dimensions (H x L x W): 12mm x 60.1mm x 12mm
  • Weight: 0.1 kg
Key Features
  • Operating range from 20 mm to 150 mm, extendable to 250 mm
  • High resolution of ≥ 0.069 mm
  • Repeatability of ± 0.15 %
  • Measurement accuracy of ± 1 %
  • Temperature compensation included
  • Fast response time of 24 ms and output time of 8 ms
  • Ultrasonic frequency of 380 kHz
  • Analog current output (4 mA to 20 mA) with 12-bit resolution
  • IP65 / IP67 rated enclosure for robust protection
  • Metal housing with nickel-plated brass and polyurethane foam ultrasonic transducer
  • M12 x 1 thread size with 4-pin male connector
  • Safety-related parameters with MTTFD of 101 years and DCavg 0%
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
  • Industrial automation for distance measurement
  • Object detection and positioning
  • Level measurement in tanks and silos
  • Robotics and material handling systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption of ≤ 0.9 W reduces energy usage
  • Durable metal housing extends product life, reducing waste
  • Complies with China-RoHS for reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK UM12-1172261 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise measurement applications.
