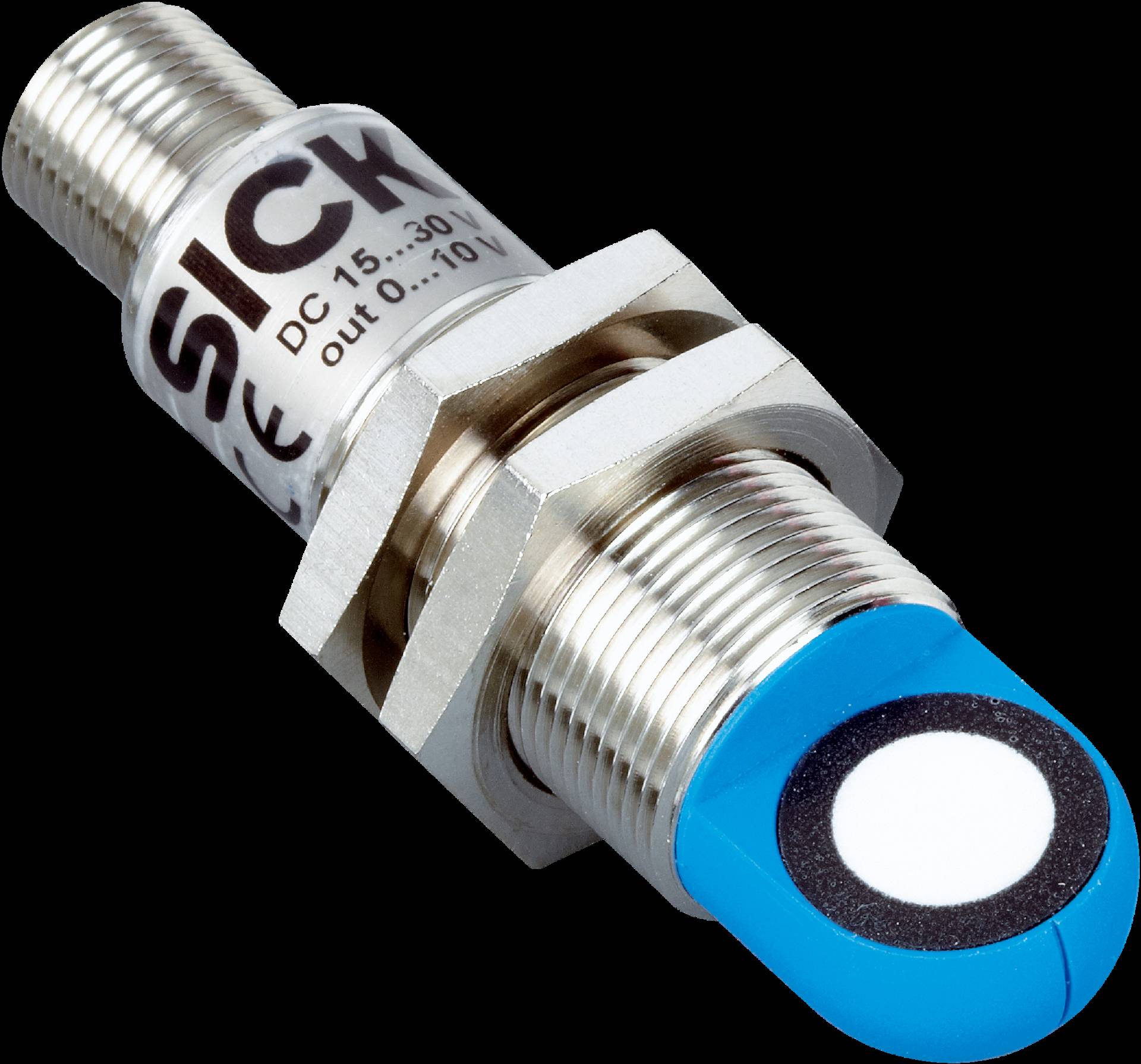

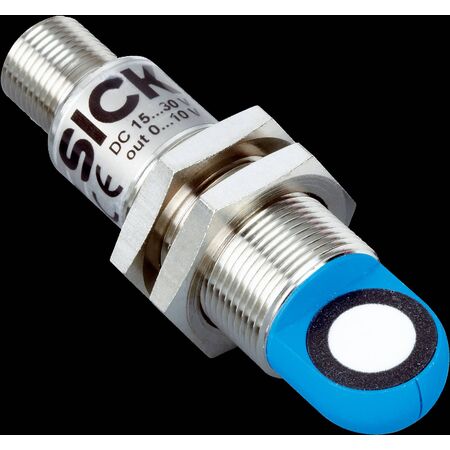

Ultrasonic Distance Sensor UM18 | IO-Link Interface | Reliable Measurement | M18 Housing | by SICK
The Ultrasonic Distance Sensor UM18 is designed for precise distance measurement in industrial automation, featuring an IO-Link interface and reliable performance regardless of material color or ambient light. With a sensing range of up to 1,300 mm and a compact M18 housing, it's perfect for machine integration and robotics in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | IO-Link Interface | Reliable Measurement | M18 Housing | by SICK
Brand: SICK
SKU: 6066167
Alternatively Known As: Ultrasonic distance sensor UM18, SICK UM18 sensor, M18 ultrasonic sensor, IO-Link ultrasonic sensor
Technical Specifications
- Minimum measuring range: 20 mm
- Maximum measuring range: 150 mm
- Communication interface: IO-Link
- Type of digital output: push-pull PNP/NPN
- Type of analog output: voltage output
- Measuring frequency: 380 kHz
- Switching frequency: 25 Hz
- Response time: 32 ms
- Screwed joint: M12, 5-pin
- Dimensions (H x L x W): 18mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Material handling and packaging systems
- Robotics and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available for immediate purchase, ideal for industrial automation and machine integration applications.
