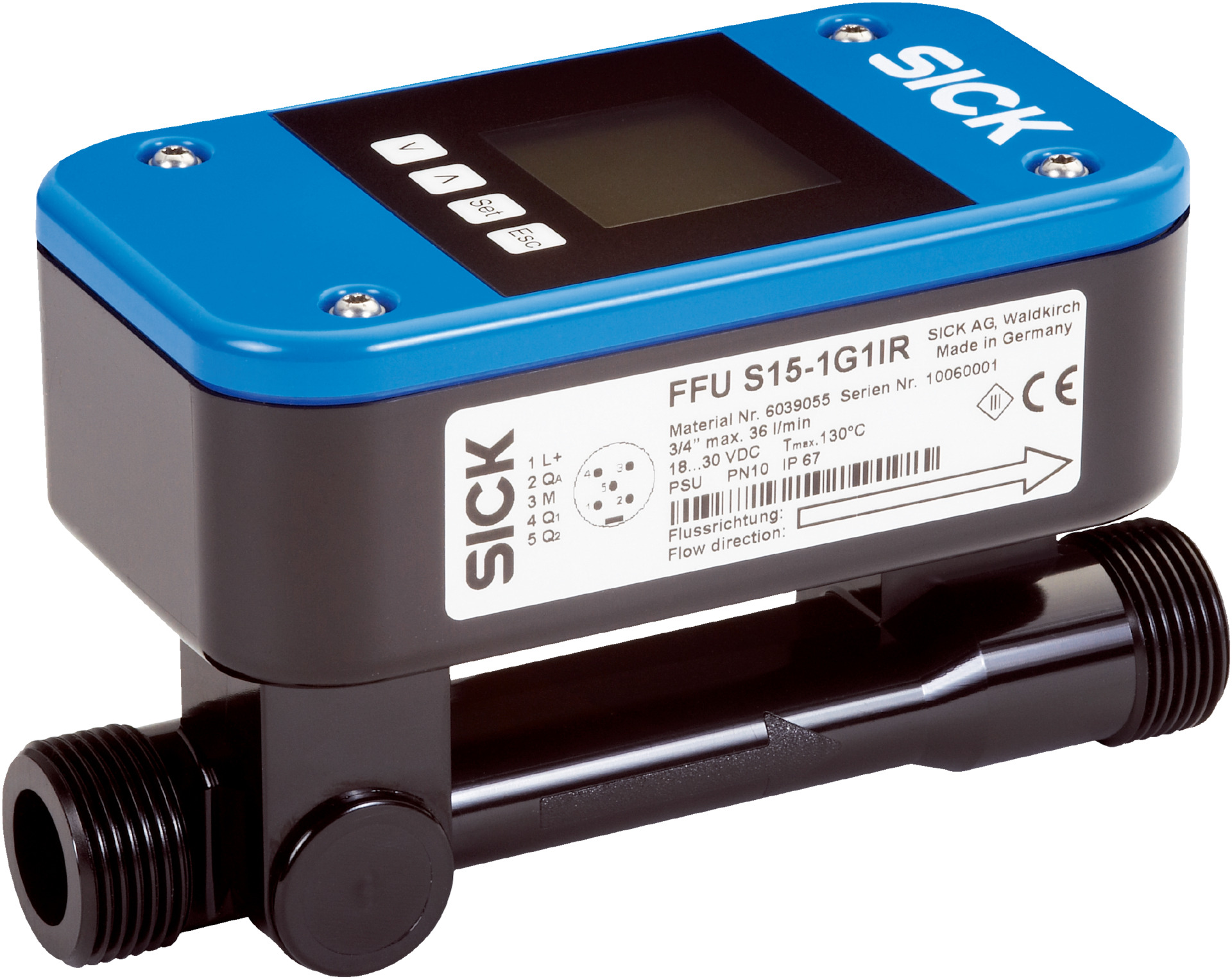

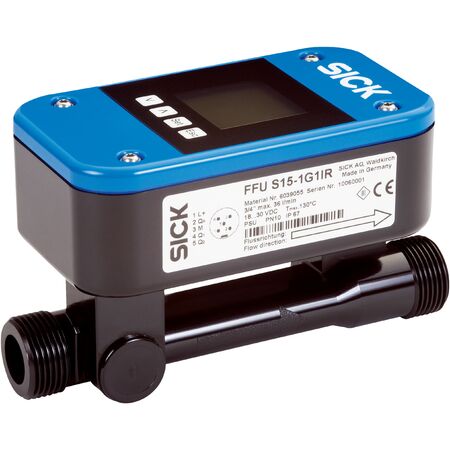

Ultrasonic Flow Sensor DN15 | High Measurement Accuracy | IP67 Rated | by SICK
The Ultrasonic Flow Sensor DN15 is designed for precise fluid flow measurement in industrial applications, featuring an ultrasonic sensor measurement principle and a high measurement accuracy of ±1%. With a process temperature range from 0 °C to +80 °C and an IP67 rated enclosure, this sensor is perfect for water management, chemical processing, and manufacturing control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Flow Sensor DN15 | High Measurement Accuracy | IP67 Rated | by SICK
Brand: SICK
SKU: 6049017
Alternatively Known As: Ultrasonic Flow Meter DN15, Fluid Flow Sensor, SICK Flow Sensor FFUC15, Industrial Flow Meter
Technical Specifications
- Measurement principle: Ultrasonic sensor
- Medium: Fluids
- Nominal width measuring tube: DN 15
- Process temperature: 0 °C to +80 °C
- Process pressure: ≤ 16 bar
- Minimum flow: ≥ 0.9 l/min
- Maximum flow: ≤ 36 l/min
- Inlet zone: 30 cm
- Output zone: 5 cm
- Conductivity: No limitation
- Measurement accuracy: ±1% of measured value ±0.15% of measuring range limit (with calibration log)
- Repeatability: ≤ 0.5%
- Resolution: 0.006 l/min
- Response time: 100 ms to 4.2 s depending on mode
- Supply voltage: 18 V DC to 30 V DC
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 180 mA
- Switch-on time: ≤ 5 s
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: Analog output 4 mA to 20 mA, pulse/status output PNP/NPN transistor
- Output current: < 100 mA
- Output load: < 500 Ohm
- Lower signal level: 3.8 mA to 4 mA
- Upper signal level: 20 mA to 20.5 mA
- Impulse/frequency output: 0 kHz to 10 kHz
- Puls width: ≤ 1 s
- Inductive load: 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Process connection: G ¾
- Wetted parts: PPSU, EPDM
- Housing material: PPSU
- Ambient operating temperature: 0 °C to +60 °C
- Ambient storage temperature: –20 °C to +70 °C
- Dimensions (H x L x W): 80mm x 100mm x 50mm
- Weight: 0.35 kg
Key Features
- Ultrasonic sensor measurement principle
- Suitable for fluids with nominal width DN 15
- Process temperature range from 0 °C to +80 °C
- Process pressure up to 16 bar
- High measurement accuracy ±1% of measured value ±0.15% of range limit with calibration log
- Repeatability ≤ 0.5%
- Resolution of 0.006 l/min
- Fast response time from 100 ms to 4.2 s depending on mode
- Analog output signals 4 mA to 20 mA and pulse/status output
- IP67 rated enclosure for protection against dust and water
- Connection via round connector M12 x 1, 5-pin
- Wetted parts made of PPSU and EPDM for chemical resistance
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration.
Applications
- Industrial fluid flow measurement
- Process control in manufacturing
- Water and wastewater management
- Chemical and pharmaceutical industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-invasive ultrasonic measurement reduces contamination risk
- Durable materials extend product life and reduce waste
- Low power consumption of ≤180 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK FFUC15-1G1IO Ultrasonic Flow Sensor is available for immediate purchase, ideal for precise fluid flow measurement in industrial and process applications.
